210w 182 Cells - China

SiNx AR Coating

Passivation

P+ emmitter

n-Silicon substrate

Tunneling layer

n+ Poly

SiNx AR Coating SMBB Technology

Reduce the current transmission distance, reduce grid line shielding, and improve optical utilization

SMBB technology combined with round wire ribbon can increase the utilization rate of incident light by 70%, and increase the power by 1-1.5% Higher Power

For the same module type, the power of N-type modules is 15-30w higher than that of p-type modules Lower Temperature Coefficient

The temperature coefficient of P-type PV module is -0.35%/℃

N-type module optimized temperature coefficient to -0.29%/℃

Power generation is particularly prominent in high temperature environments Better Power Guarantee

N-type modules decay 1% in the first year (P-type 2%)

Power warranty for 30 years (Double Glass)

After 30 years, the output power is not lower than 87.4% of the initial power (Double Glass) Excellent Mechanical Load

Positive mechanical load up to 5400Pa

Negative mechanical load up to 2400Pa Better frame design for PV Module

Thicker frame prole

Stronger material strength

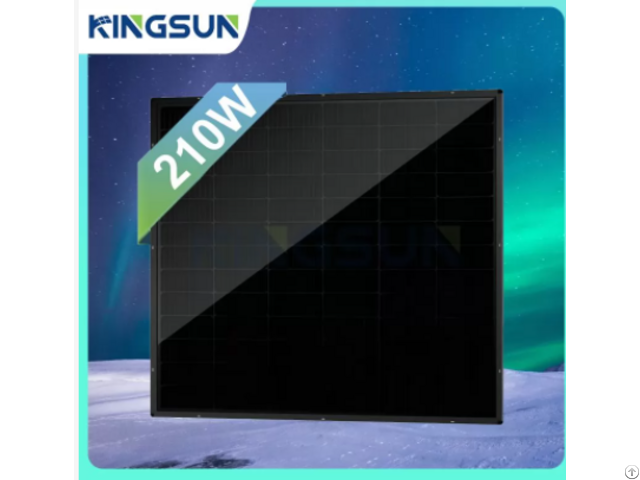

Larger frame chamber to disperse loading pressure 210W (182 cells)

Max.

Power at STC Pmax 210W

Optimum Operating Voltage Vmp 44.46V

Optimum Operating Current Imp 4.72A

Open Circuit Voltage Voc 53.04V

Short Circuit Current Isc 5.01A

Dimensions 980x1155x5.9mm

Weight 7.9kg Why Choose KINGSUN for Your Commercial Solar Needs

Superior Quality and Efficiency: Our commercial solar panels are manufactured using advanced technology and materials, ensuring high efficiency and durability.

KINGSUN is committed to providing products that meet rigorous industry standards, ensuring long-term performance for our clients.

Expert Consultation and Support: Our knowledgeable team works closely with clients to assess their energy needs and develop tailored solutions.

From initial consultation to installation and ongoing maintenance, KINGSUN provides comprehensive support throughout the entire process.

Company Contact:

• Posted By: King Sun Estate Pte.Ltd.

• Phone: 86-510-85885636

• Address: ROOM 530,NO.555,LIANGQING ROAD, WUXI , Jiangsu , China

• Email:

• Website: https://www.kingsunestate.com/

• Business Description: KINGSUN an industrial leading intelligent manufacturer, and green energy solutions and service provider.

  KINGSUN belong a skilled, experienced team to aide in the development & promotion of clean energy.

  KINGSUN is a professional manufacturer of PV modules.

  Using advanced intelligent and efficient automatedproduction lines,while ensuring the consistency of product quality,we also strive to shorten the yield learning curve andnew product mass production cycle,reduce production costs,and improve customer profitability.

  While producing ourselves, we alsowe have become the agent of industry Tier1 brand LONGi and Huawei.

  Other than solar panels, KINGSUN is also specialized in on-grid systems ranging from 1KW to MW size.
