40g Qsfp Transceiver Module Dell Compatible 10km Lr4 Duplex Lc Connector - China

price: contact company for price

Product Description

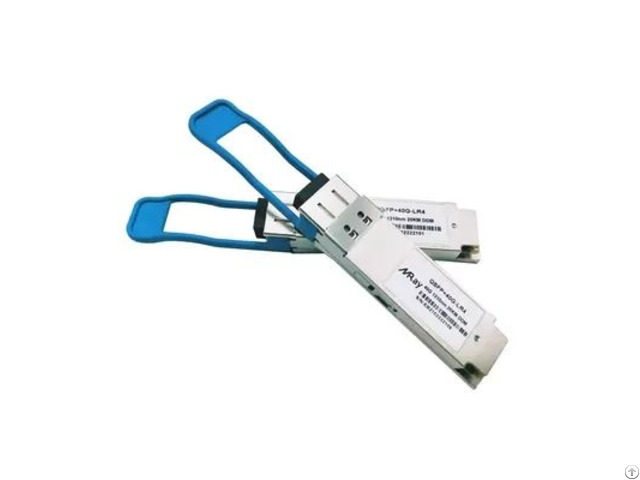

Compatible Dell QSFP+ 40GE LR4 1310nm Duplex LC Fiber Transceiver Module Description

This Dell® QSFP-40G-LR4 compatible QSFP+ transceiver provides 40GBase-LR4 throughput up to 10km over single-mode fiber (SMF) using a wavelength of 1270nm to 1330nm via an LC connector.

It is guaranteed to be 100% compatible with the equivalent Dell® transceiver.

This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically.

Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters.

This transceiver is Trade Agreements Act (TAA) compliant.

We stand behind the quality of our products and proudly offer a limited lifetime warranty.

Features Hot-pluggable QSFP form factor

Supports 39.8 Gb/s to 44.6 Gb/s

18.5 dB link insertion loss budget

Single 3.3V power supply

Maximum link length of 40km on Single Mode Fiber (SMF)

Uncooled 4x10Gb/s CWDM transmitter

XLPPI electrical interface

Duplex LC receptacles

Operating case temperature range: 0 to 70°C

3.5W maximum power dissipation

RoHS-6 compliant (lead free) Application 40G Ethernet

Infiniband QDR, DDR and SDR

Datacenter and Enterprise networking Recommended Operating Environment Parameters Symbol Min.

Typ.

Max.

Unit Case Operating Temperature TOP 0 - +70 °C Supply Voltage VCC +3.13 +3.3 +3.47 V Data Rate, per lane DR 10.3125 11.2 Gb/s Data Rate Accuracy ΔDR -100 +100 ppm Bit Error Rate BER 10-12 Supply Current ICC 1000 mA Power Consumption P 2.5 3.5 W Transceiver Power-on Initialization Time 2000 ms Control Input Voltage High VIH 2.0 Vcc V Control Input Voltage Low VIL GND 0.7 V Control Output Voltage High VOH 2.0 Vcc V Control Output Voltage Low VOL GND 0.7 V Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts) Optical Transmitter Performance

Parameters Symbol Min.

Typ.

Max.

Unit Note Operating Date Rate, per Lane DR 10.3125 11.2 Gb/s Total Average Launch Power TPAVG +8.3 dBm Average Launch Power, per Lane PAVG -7.0 +2.3 dBm Optical Modulation Amplitude (OMA), per lane POMA -5.0 +3.5 dBm 1 Difference in Launch Power between any two Lanes (OMA) PTX-DIFF 6.5 dB Transmitter Dispersion Penalty, per Lane TDP 2.3 dB Launch Power in OMA minus Transmitter and Dispersion Penalty (TDP), per Lane OMA- TDP -4.8 dB Optical Wavelength, each Lane λL0 1264.5 1271 1277.5 nm λL1 1284.5 1291 1297.5 nm λL2 1304.5 1311 1317.5 nm λL3 1324.5 1331 1337.5 nm Spectral Width (-20dB) Δλ 1 nm Side Mode Suppression Ratio SMSR 30 dB Optical Extinction Ratio ER 3.5 dB Optical Eye Mask { X1, X2, X3, Y1, Y2, Y3 } { 0.25, 0.4, 0.45, 0.25, 0.28, 0.4 } 2 Average Launch Power OFF, per Lane POFF -30 dBm Relative Intensity Noise (OMA) RIN -128 dB/Hz Optical Return Loss Tolerance ORLT 12 dB Transmitter Reflectance RTX -12 dB Input Differential Impedance ZIN 85 100 115 Ω Differential Data Input Voltage VIN-PP 150 1200 mVpp Optical Receiver Performance

Parameters Symbol Min.

Typ.

Max.

Unit Note Operating Date Rate, per Lane DR 10.3125 11.2 Gb/s Damage Threshold, per Lane DTH +3.3 dBm 1 Average Receive Power, per Lane PRX-AVG -13.7 +2.3 dBm Receiver Power (OMA), per Lane PRX-OMA +3.5 dBm Receiver Sensitivity (OMA), per Lane SENAVG -11.5 dBm 2 Stressed Receiver Sensitivity (OMA), per Lane SENSOMA -9.9 dBm 3 Receiver Reflectance RRX -26 dB LOS De-Assert LOSD -15 dBm LOS Assert LOSA -30 dBm LOS Hysteresis LOSHY 0.5 dB Receiver Electrical 3dB upper Cutoff Frequency, per Lane FCUT 12.3 GHz Output Differential Impedance ZOUT 85 100 115 Ω Differential Data Output Voltage VOUT-PP 370 600 950 mVpp


Company Contact:


  • Phone: 86-0755-23300895

  • Address: A2315, Hezheng Huiyicheng, Laodong Community, Xixiang, Baoan, Shenzhen, China, Shenzhen , Guangdong , China

  • Email: Email


Published date: June 4, 2021

  • Business Description: Shenzhen Miray Communication Technology Co., Ltd., established in 2009 with the headquarter in Shenzhen, China, is a professional optical fiber transmission equipment manufacturer which included in R&D, manufacture, sales and service.

    Our company devotes to provide high-speed data transmission solutions for data centers, cloud computing, transmission and other fields.

    The active device product line of Miray mainly includes 1G SFP optical module, 10G SFP+ optical module, 10G XFP optical module, 25G SFP28 optical module, 40G QSFP optical module, 100G QSFP28 optical module, high-speed copper cable (DAC) components, high-speed Active Optical Cable (AOC) components.
