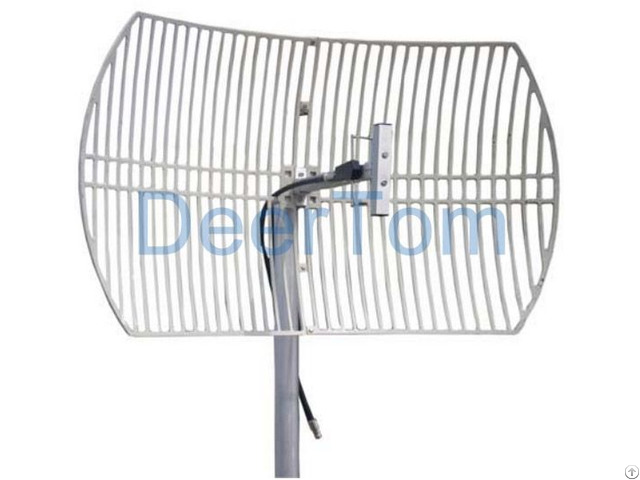

800mhz Cdma Grid Parabolic Antenna 15dbi Outdoor Directional Point High Gain Base Station - China

ELECTRICAL

Model DT-GPA824-896-15

Frequency Range 824-896MHz

Gain 15dBi

Beamwidth H: 15°, E: 10°

VSWR ≤1.5

F/B Ratio ≥23dB

Polarization Vertical or Horizontal

Max Power 100W

Nominal Impedance 50Ω

Lightning Protection DC Ground

MECHANICAL

Connector N Female or customized

Antenna Dimension 600*900mm

Weight 5kg

Mounting Kits L Bracket & U Bolts

Working Temperature -40 ~ + 60℃

Pole Diameter Ф33～55mm

Rated Wind Velocity 60m/s
