8am Motor Thermal Protectors Factory Price - China
price: 0.30 Dollar US$

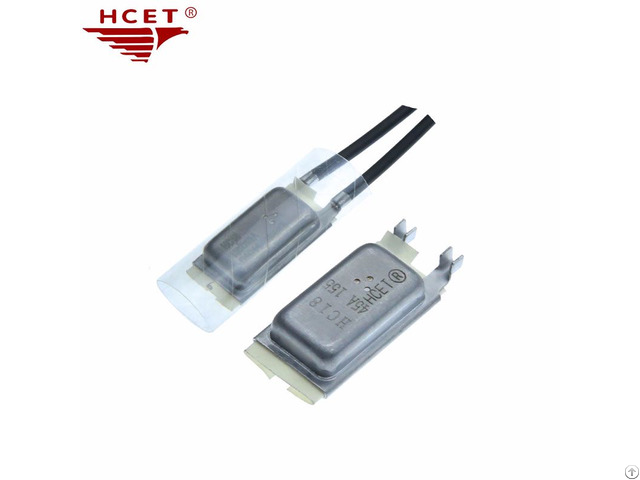

HC18/8AM Series Thermal Motor Protector HC18 series are both temperature and current sensitive.
They can protect the applications like motor or transformer from overheating or loading.
Special Features:
● Fault conditions up to 60 amps
● Compact and easy to install .
● Individually temperature calibrated and checked.
● Accurate trip off time can prevent motor from overheating.
● Both temperature and current sensitive.
● Terminals are optional and customized.
● Wires are optional and customized.
Electrical Characteristics: ● 125VAC/250VAC: 15A~60A
● 12VDC/24VAC: 15A~60A
Technical Parameters:
● Available with nominal calibration temperature from 80℃ to 180℃
● Tolerance Code: ±5℃, ±8℃
● Trip off current range: 15-60A.
● Time check at T-ambient 25℃: 4 to 10 seconds
Main Applications are as follows:
● Automotive motors
● Ballast protection
● Capacitor start motors
● Split-phase motors
Company Contact:
- Posted By: Nanjing Haichuan Electroic Co.,Ltd
- Phone: 18013321277
- Address: No. 1202, Liuxin Road,Luhe Development, Nanjing, Jiangsu, China, Nanjing , Jiangsu , China
- Email:
- Website: http://www.hcet.cn
Published date: April 14, 2019
- Business Description: Nanjing Haichuan Electronic Co., Ltd., located in Nanjing Fourth Bridge Economic Park, is a
professional company of producting, designing of high-end motor protector, over current protector, thermal protector, high tech enterprise of temperature control switch and temperature controller.
The company has a complete and scientific quality management system,
Nanjing Haichuan electronic limited company's good faith,
strength and quality of products to obtain the unanimous endorsement of the industry.
Company has the ISO/TS16949 quality management system certification, has a number of
independent patents, Products pass the UL, VDE, CQC international security certification, the introduction of Japan, Taiwan advanced automation equipment, the production of a wide range of products Application in the glass elevator motor, wiper motor, juice machine, mixer, small tubular motor, power tools, batteries, transformers and other fields.
