Accurate Portable Laser Welding Machine Energy Saving For Cell Phone Batteries - China

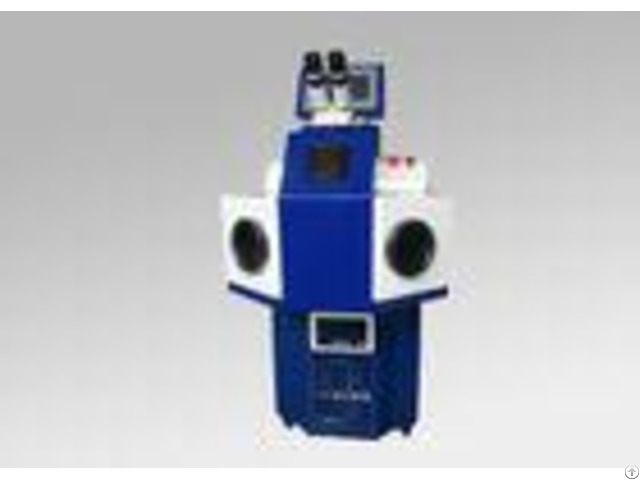

YAG Laser Spot Reparing Welding Machine for Jewelry Product Description : This machine is specially designed for jewelry laser welding, which is mainly used in jewelry patching holes and blister repairing.

Laser spot welding is one of the most important applications for material processing technology.

The procedure of spot welding belongs to heat conduction type, thats to say the laser radiation heat the surface of the workpiece, the heat on the surface spread toward inside by heat conduction.

By controlling the parameters as width, energy, peak power and repeat frequency, etc.

of the laser pulse, workpiece will be melted and formed special molten pool.

Due to the particular advantage, it has been successfully used in processing gold and silver jewelry as well as welding tiny and small parts.

The laser welding machine is the application of the laser wavelength of 1064nm pulsed laser after the beam expander, reflection, focus radiation processing surface, surface of the heath through the heat transfer-oriented spread to the internal.

By digital precise control of the width of the laser pluse energy, peak power and repetition rate and other parameters make the workpiece melt, then forming as pecific bath, in order to achieve the right to be machined parts laser welding, precision welding to complete the traditional process can not be achieved.

Features: During the welding process, heat affected zone is small, welding spot size can be adjusted freely.

Welding point is fine, smooth and beautiful, no excessive weld treatment.

It can be located accurately and the welding process will not harm the surrounding mosaic jewelry.

Welding speed is fast, of high quality, solder joint non-polluting, high enviromental.

For different metal material they can be welded together directly.

The whole machine volume is compact and easy to operatee, besides, two hours of training can do post operation.

Our equipements can work non-stop for 24 hours and they dont need any special maintenance.

Specification: - - - - Machine model | Unit | RL-YW80 | RL-YW100 | RL-YW200 | Max.

power | W | 80 | 100 | 200 | Wavelength | nm | 1064 | Type of laser | | Nd: YAG | Pump source | | Xenon Lamp | Max.

single pulse energy | J | 25 | 60 | 90 | Pulse width | ms | 0.1-10 | 0.1-20 | Frequency | Hz | 0-50 | 0-100 | Solder joint size | mm | 0.2-2.0 | Max.

welding depth | mm | 0.5 | 0.6 | 1.0 | Cooling way | | Water Cooling | - - - - Industry application: It applies top the same material welding of stainless steel, diamondor welding dissimilar material and son on.

It is widely used in cell phone batterie, sensors, medical equipment, craft gifts, watches, electronic components, sensors, precision machinery, communications and other industries.
