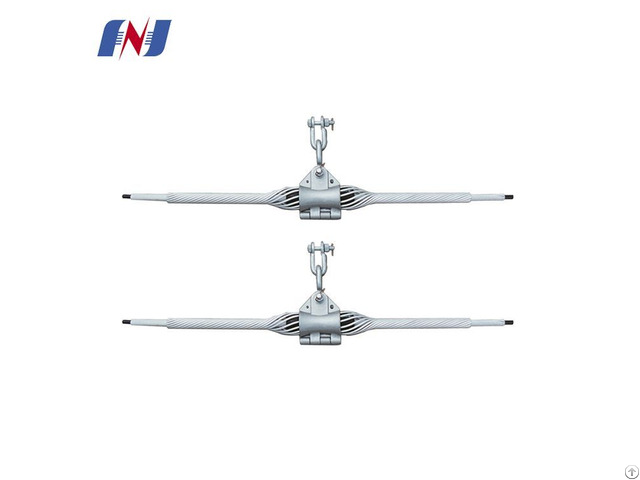

Adss Preformed Suspension Clamp - China

Composition: inner pre-twisted wire, the outer pre-twisted wire, rubber insert, cast aluminum shells, right-angle shackle, U-type shackle.

Product Description Let us go visit Composition: inner pre-twisted wire, the outer pre-twisted wire, rubber insert, cast aluminum shells, right-angle shackle, U-type shackle.

Purposes: supporting cable, make the ADSS hang on the tower.

Features: a, stress on average, no concentration stress, protect cable better.

b, good dynamic stress.

It can provide enough grip strength(14%RTS) c, rubber clip block make abrasion low .

d.

rounded end improve the corona voltage e.

excellent aluminum alloy improve the mechanical and resist-corrosion function, extend life.

Technical requirements: meet the DL / T 766-2003 ADSS with the preformed helical fittings technical requirements and test methods.

Ordering Information: A.

Choose the suitable XC suspension clamp according to the outer diameter, span, rated tension strength of ADSS cable etc.

parameters B.

the quantity configuration: 1 set / line tower.

C.

if the clamp need to install the corona coils and vibration damper, the inner performed wire need to prolong D.

clamp strength: 30KN, 50KN, 70KN etc.

Specifications Parameter table for ADSS with the XC preformed Suspension clamp:

Model For span (m) Length of inner rods Length of outer rods Clamp quality (kg)

AXC-200-** 101-200 1200 1000 2.7

AXC-300-** 201-300 1300 1100 2.8

AXC-400-** 301-400 1500 1200 2.9

AXC-500-** 401-500 1700 1300 3.1

AXC-600-** 501-600 1900 1500 4.0

AXC-700-** 601-700 2000 1600 4.1

AXC-800-** 701-800 2100 1700 4.3

Note: **-- Cable diameter (mm)
