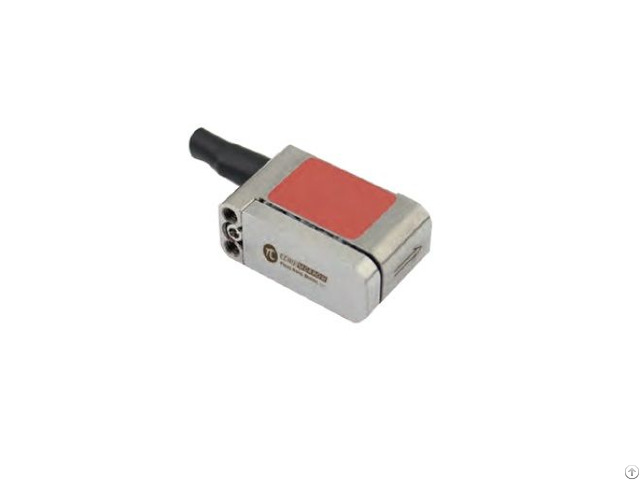

Amplified Z Axis Linear Stage Piezoelectric Actuated Total Station Accessories - China
price: contact company for price
P87 amplified piezo actuator is specially designed for space-limited applications.
It is compact, small size, and equipped with closed-loop sensors.
It is ideal for high-precision, space-limited applications, such as small-volume fiber end-face detectors.
Characteristics
Displacement to 38μm
Closed-loop sensor
Small size Suitable for fiber end detection Technical Data
Type: P87 - X38S
Travel range: 38μm±10%
Driving voltage: 150V
Sensor: SGS
Closed-loop resolution: 1.3nm(5mV ripple)
Unload resonant frequency: 1200Hz±20%
Capacitance: 0.8μF±20 %
Material: stainless steel, aluminium
*Nominal Stroke at 0~150V, Max.
stroke at -20~150V.
Recommended voltage 0~120V for long-term and high-reliable operation.
Company Contact:
- Posted By: CoreMorrow Ltd.
- Phone: 0451-86268790
- Address: 1F, Building I2, No.191 Xuefu Road, Nangang District, Harbin，China, Harbin , China , China
- Email:
- Website: http://www.coremorrow.com/en/
Published date: April 18, 2024
- Business Description: CoreMorrow Ltd. focuses on research，development, production and sales of nanoscale precision positioning products, mainly in the service of high-end precision equipment manufacturers.
After nearly 20 years of rapid development, our market has covered all well-known colleges and universities, research institutes, and high precision equipment manufacturers, and exported to Europe, America, Canada, Singapore, Japan, Korea and other countries.
We have established partnerships with a number of high-tech enterprises, state key laboratory, has become Chinese most professional precision positioning products manufacturer.
