At070tn83 V 1 800 480 Lcd Module Rising Sun - China

800x480 AT070TN83 V.

1 TFT LCD Screen Innolux 7 inch tft 40pin

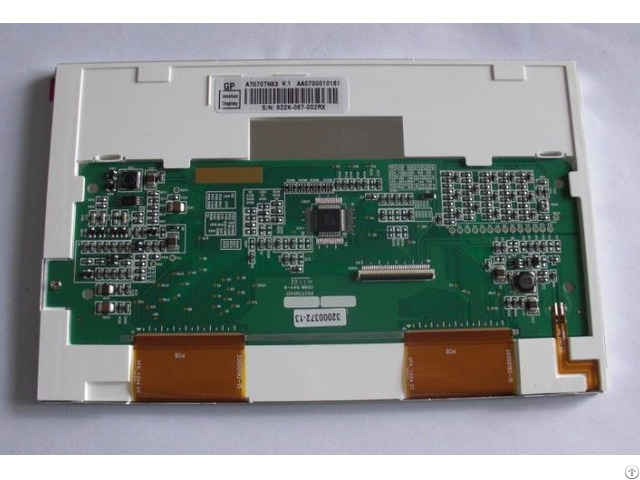

AT070TN83 V.

1 800*480 lcd module-Rising-sun

Productor Innolux

MODEL AT070TN83 V.

1

Size 7.0"

Resolution 800*480

Resolution Name WVGA

Display scale 15: 9

Pixel Arrangement RGB

Pixel Pitch 0.0635*0.1905 mm

Technology a-Si TFT-LCD

Luminance 300 nits

Contrast Ratio 500: 1

Color 262K

Color Saturation) -1%

Response 10/15 (Tr/Td) ms

Viewing Angle 50/70/70/70

The Best View 6 o'clock

White Field Chroma X: 0.310; Y: 0.330

White Field Dynamic 1.33 (9 points)

Scanning Frequency 60Hz

The kind of Singnal Parallel

Interface TTL

Singnal Interface Definition DRGB-40P1C6B-260B

Drive-screen voltage 3.3V

Input Current 250mA (ICC)

Brand of Singnal Interface HRS

Model of Singnal Interface FH19SC-40S-0.5SH

Pitch of Singnal Interface 0.5 mm

Pin of Singnal Interface 40 pins

Operation Temperature -20 °C ~ 70 °C

Storage Temperature -30°C ~ 80°C

Active Area 152.40*91.44 mm

Display Area 155.3*94.3

Outline 165.00* 104.00*5.50 mm

Backlight WLED

Life Time of Lamp 20K Hours

Brand of Backlight Interface HRS

Model of Backlight Interface FH19SC-40S-0.5SH

Quantity of Backlight Interface 1 pcs

Pitch of Backlight Interface 0.5 mm mm

Backlight Interface Define DRGB-40P1C6B-260B
