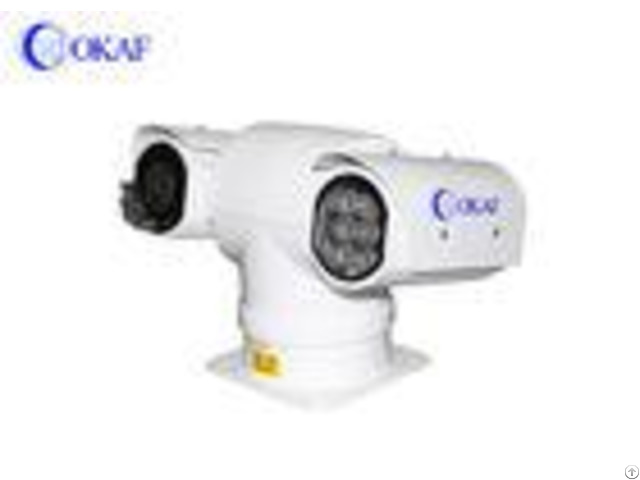

Auto Tracking Cctv Hd Sdi Ptz Cameraip Dual Output 20x Optical Zoom 100m Night Vision - China

1080P 2 Mega Pixels Full HD PTZ Camera Infrared Analog/AHD/SDI/IP For Smart City Product description: 1 - Support self-locking when power off in vertical and horizontal 2 - Adopt dot matrix infrared light, night vision is about 100m 3 - Standard defrosting, defogging, anti-freeze coil design; ensures normal usage under temperature mutations 4 - Supports coordinate display and angle acceptance instructions 5 - Built-in regulator module to protect the equipment stable and durable 6, Adopt dual control way, control PTZ and lens by RS485 and RJ45 port 7 - Easy to dismantle and convenient for maintanence 8 - Support docking with all IP/SDI/TVI/CVI/AHD and analog chip and platform PTZ function: 1 - High strength alloy aluminum crust, shock resistance, corrosion protection, suitable in all weather conditions 2 - PTZ support real-time HIKVISION, SONY, Samsung, Hitachi, and other brands HD camera chipest.

3 - Super seismic characteristics, especially good for vehicle monitoring or prison monitoring.

4 - Built-in decoder, integrate multiple protocols.

5 - 360continuously rotation.

6 - Manual rotation speed from 0 to 60 degrees/sec continuous adjustment; Vertical: -90 ~ 90 degrees; 7 - Horizontal scanning between two points Editable tour tracks, track self-learning function 8 - Vehicle power voltage-intput range: DC10.5V~DC18V Parameters: - - - - PTZ spec | | Model | OK-CT110GR-IP | Pan preset speed | 60/S(manual control 060/S) | Tilt preset speed | 40/S(manual control 040/S) | Pan range | 360continuously | Tilt range | 9090 | Preset position, Patrol track | 128 preset positions | Control way | RS485&RJ45 port dual control.

Baud rate from 2400Bps to 19200Bps optional | IP spec | | Docking chipest | HIKVISION, SONY, Samsung, Hitachi, and other brands HD camera chipest | Network port | RJ45 10Base-T/100Base-TX PoE(IEEE802.3af) | Max image size | 19201080 | Frame rate | 25/30 fps | Compression | H.

264 | Audio | External active microphone or linear input, linear output | Protocol | IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP, UDP, IGMP, ICMP, ARP | Dual stream | Support | Video Output | BNC&RJ45 dual output | Operating temperature | 35C~65C | IP level | IP66 | Power supply | DC10.5V~DC18V(12A) | Weight | 7KG | IR spec | | Chroma | 850nm | Night vision distance | 100m | Infrared lights | 3W*7 | Chipest spec | IP | Model | 23X starlight chipest | 20X | Imaging sensor | 1/1.8" ExmorCMOS | 1/2.8" ExmorCMOS | Effective pixels | 2MP | 2MP | Lens | 23X optical zoom f=5.9-135.7mm | | | 20X optical zoom f=4.7-94mm | Minimum illumination | 0.002 lUx | 0.05lux | NVR compatible | Standard ONVIF protocol, support secondary development | Chipest spec | SDI/AHD | Model | SDI | AHD | Imaging sensor | 1/2.5" CMOS | 1/4" CMOS | Effective pixels | 30X 3MP(decided by chipest) | 20X 2MP(decided by chipest) | Frame rate | 60FPS & 30FPS | 30FPS | - - - -
