Bel 0826 1x1t Gh F Ykku 0329nl Rj45 Pcb Connector - China

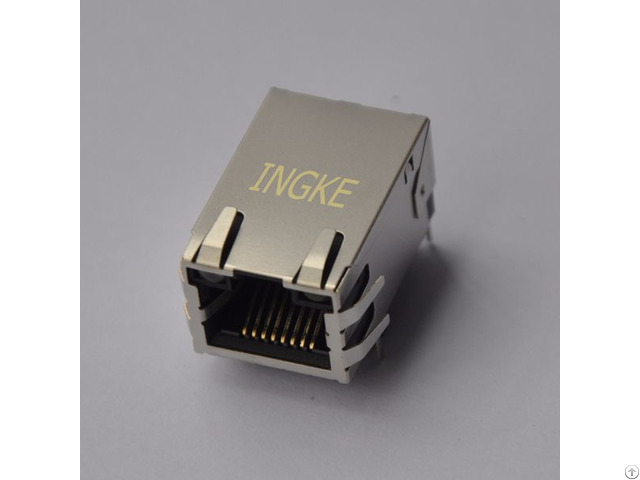

Ingke YKKU-0329NL 100% cross 0826-1X1T-GH-F rj45 pcb connector Part Number : 0826-1X1T-GH-F

Made in China: YKKU-0329NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100/1000 Base-T, AutoMDIX, Power over Ethernet+ (PoE+)

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green, Orange - Yellow

Number of Cores per Jack : 8

Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Up

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness : 30µin (0.76µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic Manufacturer: Ingke Technology Co., Ltd

INGKE can provide 3D model for engineers' design

Our service: 1).

Free sample is available! 2).

OEM & ODM orders are welcomed.

3).

We offer after-sale service for 8 years.

Our Advantage: 1).

High-quality, OEM factory for RJ45 Connector more than 10 years.

2).

Cost reduction, lead time within 1 week, FREE samples.

3) .

After sales services 24*7 to help you solve any kind of problems Ingke Technology Mass production of the following models;

0879-2C4R-54 0826-1C1T-43-F L8BE-1G1T-91A L834-1G1T-91 L8BE-1G1T-BFH 0826-1X1T-KH-F 0826-1X1T-HS-F G15-111T-076C G15-111T-038E 0838-1X1T-W6 0833-2X4R-54-F 0826-1X1T-80-F 0863-2X6R-54-F 08B1-1X1T-06-F 0826-1L1T-57-F 0816-1X1T-23-F 0862-1J1T-43-F 0813-1X1T-23-F S811-1X1T-03-F S811-1X1T-03-F S811-1X1T-03-F 08B1-1X1T-03-F 0826-1G1T-23-F 0826-1X1T-23-F 0826-1C1T-23-F L826-1X1T-23-F 0826-1X1T-GH-F 0875-1G2T-E3 0826-1X2T-23-F 08B0-1X4T-36-F 0879-2C1R-54 0826-1X4T-23-F 0810-2H4R-28-F L826-1X4T-43-F L826-1X4T-23-F 0879-2C2R-54 0826-1G1T-43-F
