Bluetooth Headset Passive Crystal Oscillator 26 Mhz 9pf 10ppm For Digital Products - China
price: check with company for price

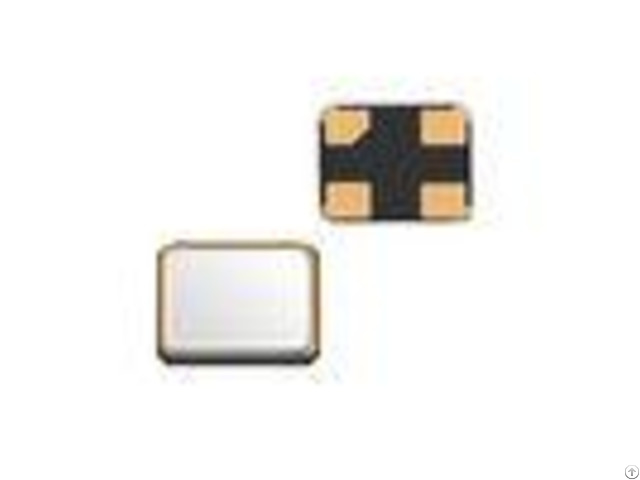

Passive Crystal Oscillator 26.000MHZ SMD2520 9PF 10PPM For Bluetooth Headset product application 1, Bluetooth Headset 2, Digital products; 3, Communication equipments product features 4 pin Resonator, small size.
Surface Mounted Technology (SMT) Lead-free production and RoHS compliance Standard Environmental Condition: Environmental Temperature: 15~35 Humidity: 45%~85% Atmospheric pressure: 86~106KPa Operating Temperature Range: -20~70 Crystal Frequency & Resistance will be tested under the following conditions, Unless extra requirments: standard temperature(252) after heat balance.
Storage Temperature Range: -40~+85 Mechanical property test: The test can be measured after 1 hours of rest at the reference temperature Dropping Test: The Units are measured for its frequency and resistance in accordance with Table1 & without mechanical damage, after allowing the crystal to fall freely.
From 75 cm of height 3 times on the firmed wood.
Vibration Test: The Units are measured for its frequency and resistance in accordance with Table 1&without mechanical damage afer subjectiong to 2hrs of vibration with 0.75mm amplitude with 10~55Hz frequency sweep 20 times.
Sealing Tightness: Find Lead Test: 110-8atmcc/S by Helium mass-mass-spectrometer detector, and vacuum and reach 110-3Pa Resistance to Soldering Heat: The Units are measured for its frequency and resistance in accordance with Table 1 after dipping into molten solder with the temperature of 32010For 3~4 secs and at a depth up to a point 2.0mm from the base root.
Product specification - - - - Type | 2520 | Frequency Range(MHZ) | 26.000MHZ | Frequency Tolerance(at25) | 10PPm, 5PPm at25+/-2 | Frequency Stability vs.
Temp(FL-T) | 10PPm, 20PPm, 30PPm | Operating Temperature range | -20~+70 -40~+85 | Storage Temperature range | -45~+80 | Temperature Characteristics | 10PPm 20PPm | Load Capacitance | 8 to 20 Pf or Serles | Aging | 3 PPm/year | Insulation Resistance | 500M(DC100V15V) | - - - - Dimension Refluence examination Frequency change: 5ppm 5, product advantage The new Tianyuan in R & D, design, manufacturing, marketing and service as a whole, have a hundred grade purification workshop.
The international advanced automated production lines, special test equipment, the latest technology and professional and technical personnel; has been preparing for the new Tianyuan own industrial park, to further expand the research and production of the higher requirements of the product.
6, FAQ Packing 3000pcs/tape.
Samples and technical support can be provided free of charge.
Company Contact:
- Posted By: SHENZHEN XINTIANYUAN ELECTRONICS CO.,LTD
- Phone: 86-755-81785287
- Address: 5 Floor,No.1 building,Tangtou Hongfa Industrial Garden, Shiyan, Baoan District, Shenzhen, Shenzhen , Guangdong , China
- Email:
Published date: May 18, 2018
- Business Description: The new Tianyuan is specialized in the quartz crystal, crystal, crystal, a national high-tech enterprise, crystal active components and TFT LCD display R & D, design, manufacturing, marketing and service as a whole, has a thousand grade purification workshop, advanced production equipment.
