Bluetooth Numeric Keypad For Pc Asynchronized - Taiwan

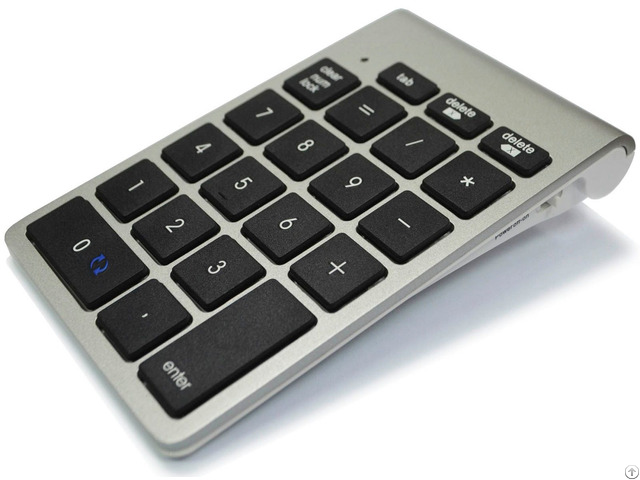

WKP-803, a stylish & low profile Bluetooth numeric keypad is specially designed for PC Notebook, Bluetooth enabled.

It supports non-synchronous function which can let keypad independently used from the notebook keyboard, leaving the notebook keyboard free for text typing.

Furthermore, it also equips Tab, backward delete and forward delete keys which are very user's friendly for using excel application software.

SPECIFICATION

* Key Number : 21 keys including Tab, Back & Forward delete keys * Tx Technology : Bluetooth wireless technology, V3.0 * Antenna/ Antenna Gain : PCB antenna /0 dBi * Frequency/ Channels : 2.402Ghz ~ 2.480Ghz/ 79 channels * Modulation : GFSK (Differential phase shift keying) * Output Power : Normal mode (GFSK): -0.61 dBm * Data Rate / Sensitivity : Up to 2.1Mbps / <0.1% BER at -70dBm * Operating Range : Up to 8 M (Free space)

* Key Switch : Scissor-type Membrane with 5 million life cycle time

* Key Force/ Traveling Distance : 55 +/- 7 gm; 2.1 +/- 0.2 mm

* LED Indicator : Indicate pairing (blinking), NumLock and Low battery (blinking slowly) * Buttons : 1 x power slide switch, 1 x pairing button * Power Source : 1.50 VDC, 1 x AA Alkaline batteries

* Operating Temperature : 0 to 50 degrees Celsius (10% to 95% RH, 25 degree Celsius)

* Storage Temperature : -10 to 65 degrees Celsius (5% to 90% RH, 25 degree Celsius)

* Dimension (mm)/ Weight : 133.5 (L) x 84.0 (W) x 21.16 (H)/ 0.15kgs (N.W.)

* Compatibility : Compatible with Windows XP, 7 or latest version (Not compatible with Mac OS)

* Accessories : 1 x AA batteries, 1 x User's manual

Company Contact:

• Posted By: DIGIMORE ELECTRONICS CO., LTD.

• Phone: 886-2-23113299

• Address: 10 FL., No. 61, Yan-Ping S. Rd, Taipei , Taiwan

• Email:

• Website: https://www.capacity-keyboard.com

• Business Description: Digimore Electronics Co., Ltd was established in 2004, located in Taiwan.

  Over 20 year experience engineers of PC keyboard design, Digimore has successfully developed a variety of Desktop Keyboards, Membrane-type capacity Gaming keyboard with full N-key rollover support, POS keyboard built-in smart card reader/ magnetic stripe card reader, Programmable POS keyboards, numeric keypads and etc.

  In 2011, we launched several new products of Bluetooth keyboards such as Mac Compatible Keyboards with multi-host switchable support, Bluetooth Keypad and etc.

  We also launched 1st one of low-profile smart card USB keyboard in the world specially designed for Mac.

  In 2016, We've started to provide ODM services with different modules including biometric/ fingerprint modules, keyboard modules and touch pad module for KVM, Bluetooth 3.0, 4.2 & 5.0 module, Bluetooth LaunchPad, 433 Mhz ASK Transmitter and Receiver modules, 2.4 Ghz GFSK Transceiver module, Keyboard Controller, Qi wireless charger module, NFC Forum Type 4 TAG module and etc.

  Thanks to our capability of logic design, we are able to meet customer's demand and to provide excellent, value for money products.

  Your solution provider is in the heart of our business.
