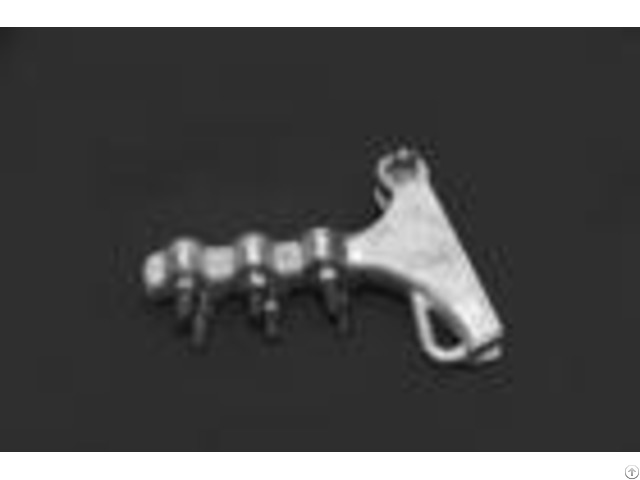

Bolt Type Dead End Clamp Aluminum Alloy Materials Iso9001 2008 Standard - China
price: check with company for price
Aluminium Alloy Bolt Type Dead End Clamp for Overhead Line Hardware Quick Details - - - - Model Number | NLL | Material | Aluminum alloy | Voltage level | 110-1000kV | Conductor dia.
| 21.0-53.0mm | Failure load | 70-160kN | Standard | ISO9001-2008, IEC 61284 | Durability | Long | - - - - Packaging & Delivery Packaging Details: 1/ Wooden case 2/ Packaging according to the costomer's request Delivery Time: Within 1 week Descriptions Bolt type pole transmission line hardware strain clamp is used in high voltage pole line to connect power fitting string or insulators|.
It also can fix the guy wire terminals on poles.
Moreover, it bears all the tension of conductors, ground wires and lighting conductors.
The clamp body and jumper clamp are aluminium, the other part are hot-dip galvanized steel.
Specification - - - - Type | conductor Dia.
(mm) | Dimensions(mm) | BOLT QTY | Failure Load(kN | Weight (kg) | M | C | L1 | L2 | NLL-1 | 5.1-11.4 | 400 | 500 | 300 | 13.5 | 2 | 70 | 10.2 | NLL-2 | 8.9-18.5 | 400 | 500 | 300 | 16 | 2 | 100 | 11.0 | NLL-3 | 5.0-15.0 | 400 | 585 | 330 | 22 | 3 | 120 | 12.9 | NLL-4 | 12.1-12.8 | 500 | 646 | 330 | 19.5 | 4 | 70 | 10.3 | NLL-5 | 18.0-30.0 | 500 | 651 | 300 | 19.5 | 5 | 100 | 11.5 | - - - -
Company Contact:
- Phone: 86-20-82970993
- Address: Shihushan,Yonghe Village,Xintang Town,Zengcheng,Guagnzhou City,Guangdong Province,P.R.China-511356 , Guagnzhou , Guangdong , China
- Email:
Published date: March 12, 2018
- Business Description: Fogang Xinyuan is the solo manufacturer for ACMCC conductor (Aluminium Conductor Multi-strand Carbon Fiber core) in China.
ACMCC is designed for double capacity of power transmission.
ACMCC Conductors can meet the requirements of ASTM, EN, BS and IEC etc.
