Communication Equipment High Frequency Crystal Oscillator Smd 3225 26 000mhz 9pf - China

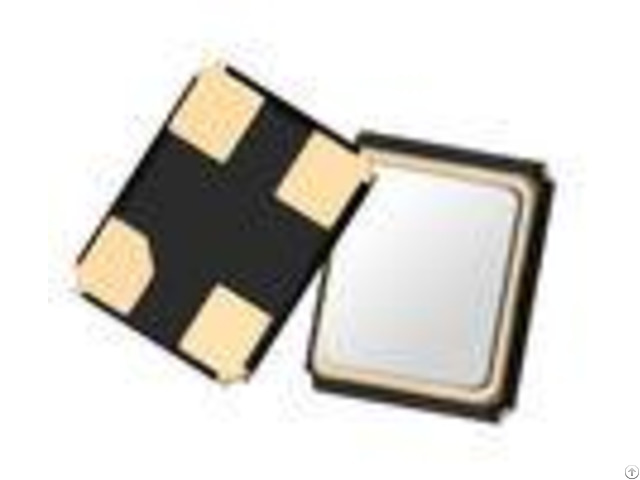

High Frequency Crystal Oscillator SMD 3225 26.000MHZ 9PF 10PPM product application 4G modules Bluetooth Wi-Fi and other common communication equipment product features Operating Temperature Range: -40~85 Crystal Frequency & Resistance will be tested under the following conditions, Unless extra requirments: standard temperature(252) after heat balance.

Storage Temperature Range: -40~+85 Mechanical property test: The test can be measured after 1 hours of rest at the reference temperature Dropping Test: The Units are measured for its frequency and resistance in accordance with Table1 & without mechanical damage, after allowing the crystal to fall freely.

From 75 cm of height 3 times on the firmed wood.

Vibration Test: The Units are measured for its frequency and resistance in accordance with Table 1&without mechanical damage afer subjectiong to 2hrs of vibration with 0.75mm amplitude with 10~55Hz frequency sweep 20 times.

Sealing Tightness: Find Lead Test: 110-8atmcc/S by Helium mass-mass-spectrometer detector, and vacuum and reach 110-3Pa Resistance to Soldering Heat: The Units are measured for its frequency and resistance in accordance with Table 1 after dipping into molten solder with the temperature of 32010For 3~4 secs and at a depth up to a point 2.0mm from the base root.

The crystal integrated circuit of communication equipment, to produce a clock frequency of communication equipment, communications equipment, all instructions are performed is built on this basis, the clock frequency crystal oscillator provides higher running speed of the communication equipment is very fast.

product advantage The new Tianyuan in R & D, design, manufacturing, marketing and service as a whole, have a hundred grade purification workshop.

The international advanced automated production lines, special test equipment, the latest technology and professional and technical personnel; has been preparing for the new Tianyuan own industrial park, to further expand the research and production of the higher requirements of the product.

Product specification - - - - Type | SMD 3225 | Frequency Range(MHZ) | 26.000MHZ | Frequency Tolerance(at25) | 10PPm, 5PPm at25+/-2 | Frequency Stability vs.

Temp(FL-T) | 10PPm, 20PPm, 30PPm | Operating Temperature range | -20~+70 -40~+85 | Storage Temperature range | -45~+80 | Temperature Characteristics | 10PPm 20PPm | Load Capacitance | 8 to 20 Pf or Serles | Aging | 3 PPm/year | Insulation Resistance | 500M(DC100V15V) | - - - - Dimension Refluence examination Frequency change: 5ppm FAQ Packing 3000pcs/tape.

Samples and technical support can be provided free of charge.
