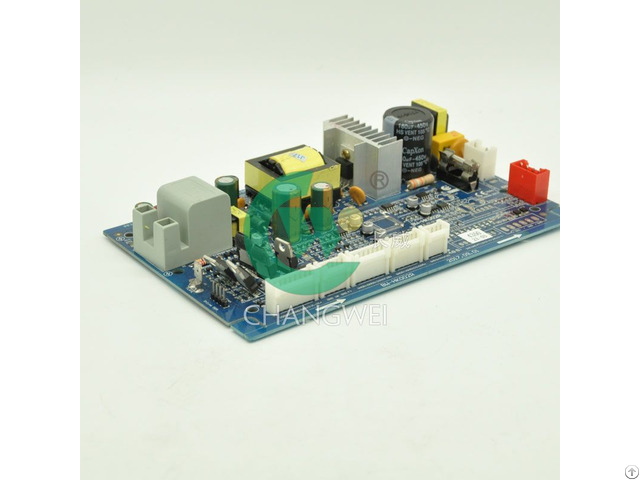

gas water heater control board Function description

1) It works with a display.

2) It works with a ventilator.

3) It works with a on-off valve, a proportional valve and a section valve.

4) It is with a buzzer.

5) It has AC ionization flame signal detection.

6) Status keeping function: If the nP menu was set as ON, after power on again, the system

will return to the last status before the power is cut off.

7) Flue pipe block-up protection.

8) Malfunction protection and warning function.

9) Compliance with Standard: BS EN298: 2012 - ANSI Z21.20 -2014 - CAN/CSA C22.2 No.

60730-2-5-2014.

More information you can visit our website

Main technical parameters

Working voltage range 90VAC ~ 120VAC

Rated voltage 120VAC 60Hz

Power frequency 50/60Hz±5%

Rated frequency 50Hz

Dielectric strength(V/1min) 1800V, 0.5mA, 3S

Working ambient temperature -10℃~70℃

Ambient temperature -20℃~70℃

Life cycle ≥50, 000 times

Temperature setting range 35-65℃

High temperature protection when the output water temperature ≥85℃ for 3S

Pre- cleaning time 2S

After cleaning time 20s

Start-up water flow ≤3L/min

Closing water flow ≤2.5L/min

Ignition time 8±1S

Cleaning time before 2nd ignition 3S

Max.

allowable No.

of ignition 2

Valve moving pulse 0.5±0.05S

24V Valve open voltage ≥24V

24V Valve holding voltage ≥8.5V

Output voltage of switch power supply 5VDC (with 300mA working current) 30±1.5VDC(with 510mA working current) 12±1VDC(with 110mA working current)

Ion sensibility of flame detection ≥5.1MΩ

Temperature detection precision ±2℃

Waiting time of reaching setted temperature ≤35S

Water temperature overshoot range ±3℃

Timing tolerance ±1 minutes

Post-purge time 20±2s

Time to achieve safe shut down ＜1s

Trial for ignition period 7.5±1s
