External Thread Preload Piezo Actuators Quick Response Customized Parameter - China

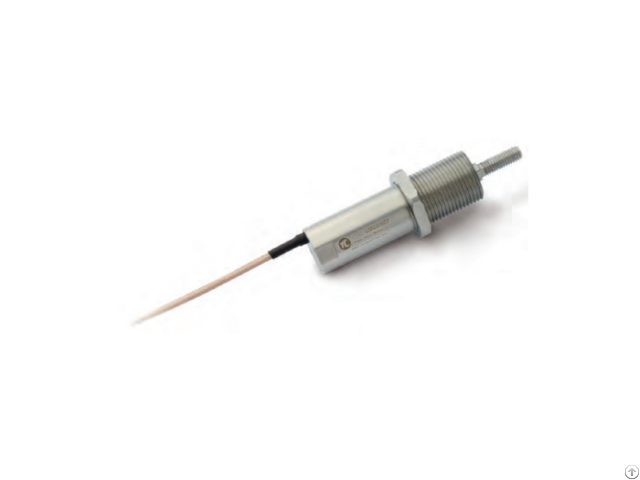

M14 preloaded piezo actuator with front mount thread has thread on its shell.

It is easy to install and fix with external mechanical screw.

It is mainly used for beam deflection, optical adjustment, lens adjustment, angular motion applications, etc.

For high stiffness, the piezo actuator uses lock nut.

Characteristics

• With front mount thread • Bocking force to 1200N • Displacement to 114μm • Fast response • Linear nanometer motion • Custom is available Front Mount Thread

The thread size on the M14 housing is M14 × 1 and the thread length is 20mm.

The thread size can be customized.

Locknut

There is a standard locknut with actuator to increase the stiffness.

Load Connection

Plane, spherical, internal thread, external thread are optional and custom is available.

Coarse and Fine Adjustment

The external thread on the casing is used for installation and coarse adjustment.

When the voltage is applied, the piezo actuator can follow the voltage signal to generate an elongation, contraction and reciprocating motion with nanoscale accuracy.

Application

Beam deflection, optical path adjustment, inteference, active and adaptive optics, shock absorption, precision machining, etc.

Technical Data

Type：FPSt150/7/7 M14

Stroke* [μm]±10%: 9

Stiffness [N/μm]±20%: 120

Push/pull force [N]: 1200/200

El.

capacitance [μF]±10%: 0.7

Resonant frequency [kHz]±20%: 40

Length L1 [mm]±0.3: 21

Length L2 [mm]: 15 You can contact us for other specifications and models.
