Front End Double Acting Hydraulic Cylinder Dump Truck Multistage Telescopic - China

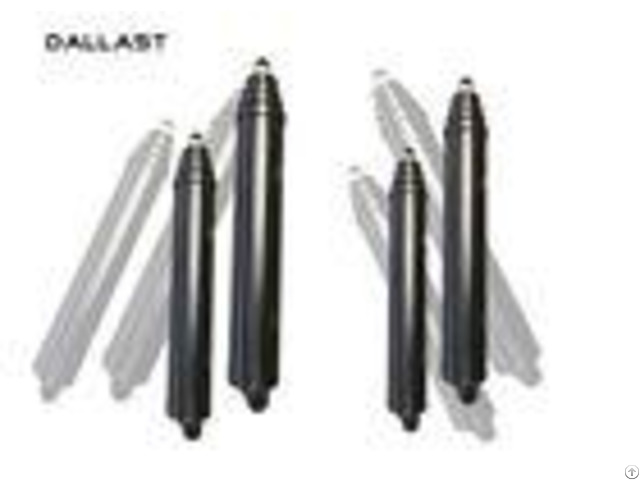

Dump Truck Multistage Telescopic Front End Double Acting FC Hydraulic Cylinder We can provide you with many sorts of single acting telescopic hydraulic cylinder and multistage telescopic hydraulic cylinder which are widely used for trailers, tippers and dump truck.

The bore size of Dump Truck Hydraulic Cylinder is range 75mm to 278mm which can provide the max power of 120t.

We also can design it according to your request.

Specification: - - - - Application | Dump truck, Tipper, Trailer, hoist | Material of cylinder tube | steel | Coating | All tubes are chrome plated | Working pressure | 10MPa-25MPa | Bore size | 85mm-248mm | capacity | 7t-120t | Stroke | 2000mm-12000mm | Color | Black, Blue, Yellow, White, Red etc | Mounting Type | Earring-trunnion, double trunnion, double earring (eye end) | Plunger | 20#, 45# steel with high frequency quenching | Certification | ISO9001: 2008, SGS, TS16949 | Warranty | One year after shipping arrival | working temperature | -30 C to 80C | - - - - Product description: Telescopic front end hydraulic Cylinder The multistage telescopic hydraulic cylinder(FC/FE/FEE) is used for dump trucks, Iis interchangeable with Holland's Hyva and UK'S Edbore.

Bore size: 75-278mm.

Max stroke: 12000mm.

Maxpressure: 24 MPa.

Max capacity: 120t.

We also can design it according to you request.

- - - - no | Models | Extension | Bore Dia | Stroke | Top trunnion | Bottom trunnion | Lug dia | Closed length | Pressure | ID | OD | ID | OD | 1 | 3TG-F85*2743EZ-00 | 3 | 85 | 2726 | / | / | 165.1 | 228.5 | 32 | 195 | 20 | 2 | 4TG-F150*4280EZ-00 | 4 | 150 | 4280 | / | / | 201 | 331 | 60 | 1394 | 20 | 3 | 4TG-F172*4280ZZ-00 | 4 | 172 | 4280 | 340 | 470 | 245 | 385 | 60 | 343 | 20 | 4 | 4TG-F182*4280ZZ-00 | 4 | 182 | 4280 | 340 | 470 | 245 | 385 | 60 | 343 | 20 | 5 | 5TG-F196*6180ZZ-00 | 5 | 196 | 6180 | 360 | 490 | 270 | 400 | 60 | 343 | 20 | 6 | 5TG-F206*7300ZZ-00 | 5 | 206 | 7300 | 360 | 490 | 270 | 400 | 65 | 343 | 20 | 7 | 5TG-F221*9030ZZ-00 | 5 | 221 | 9030 | 360 | 490 | 290 | 420 | 65 | 486 | 20 | 8 | 5TG-F248*9030ZZ-00 | 5 | 248 | 9030 | 420 | 560 | 342 | 480 | 75 | 486 | 20 | - - - - Quality: Good choice for our hydraulic cylinder 1 - With Rolling technology, the cylinder are straighter, the surface are harder and its quality are more durable.

2 - All piston rod have to go through comprehensive processing: Heat treating Lathing Grinding Polishing Hard chrome plating Polishing, this comprehensive processing make the cylinder harder, wearable and acid.

3 - Using imported materials for seal kits.

4 - The structure kits are made by high-strength Manganese plate 5 - Advanced surface treatment: A.

Environmental automatically pipelined painting B.

Cleaning with automatic washing machine C.

Assembling in seal clean workshop FAQ: 1 - Are you a manufacturer? Yes, we focus on the hydraulic industry for 15 years.

We are professional manufacturer in hydraulic.

We will provide competitive price.

2 - What is your warranty? Our products are all available for one-year free warranty and product lifetime consulting service.

3 - How to ship your product? We are transported by sea, by air or by international express.

According to your needs.

4 - Do you support OEM service? Yes.

OEM service is available.

We are pleased to process according to the customer's drawings.

5 - Is your design reasonable? We have professional R&D team with rich design experience.

We also establish strict but scientific product testing system so that products have perfect performance.

6 - How to choose which model hydraulic cylinder to buy? Please kindly send us your drawings, models or providing us your parameters and specification of the hydraulic cylinder like sleeves O.D., total stroke, rated pressure, closed length, vehicle body length, etc.

We can determine the most suitable model for you.

7 - How long it will take from ordering to delivering? It depends on the ordering quantity.

Generally, we will take 15-30days.

If there are any changes, we will inform you in time.
