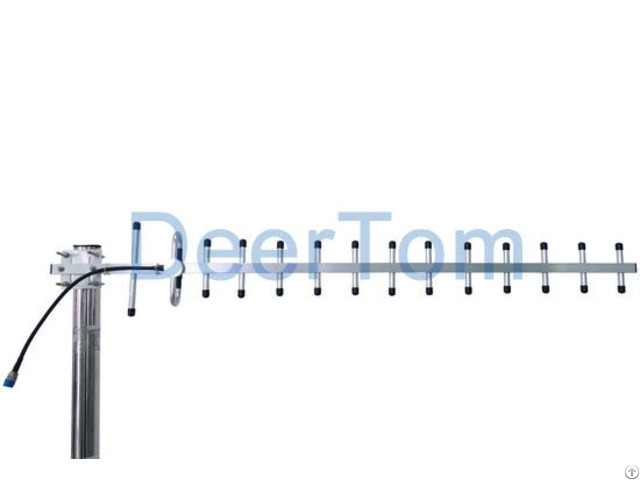

Gsm Dual Band Yagi Antenna 15dbi High Gain Outdoor Mobile Phone Signal - China

ELECTRICAL

Model DT-YA824-960-15

Frequency Range 824-960MHz

Gain 15dBi

Beamwidth H: 35°, E: 32°

VSWR ≤1.5

Polarization Vertical or Horizontal

F/B Ratio ≥ 18dB

Max power 100W

Nominal Impedance 50Ω

Lightning Protection DC Ground

MECHANICAL

Connector N Female or customized

Antenna Dimension 1050mm

Weight 1kg

Radome Material Aluminium

Rated Wind Velocity 60m/s

Elements 14

Company Contact:

• Posted By: Shenzhen Deertom Technology Co.,Ltd

• Phone: 8615019441310

• Address: No8th,Ailian Industrial Zone,Longgang District, Shenzhen , Guangzhou , China

• Email:

• Website: https://www.deertom.com

• Business Description: Shenzhen Deertom Technology Co., Ltd was founded in October 2000, it is one of the famous telecommunication

  company which specializes in designing and manufacturing all kinds of communication antennas , RF Cables,

  RF Connectors, RF Components , etc .

  Our main factory is located in Shenzhen Citry , owns a manufacture area

  of 50000 square meters .

  By following of the ISO9001 standard management systems , now Deertom has obtained many honors and

  certifications like RoHS and CE .

  Our main products include TV Antennas, VHF/UHF Antennas, CDMA Antennas,

  GSM Antennas, DCS Antennas, PCS Antennas, GPS Antennas, 3G UMTS Antennas, WIFI Antennas,

  4G/LTE Antennas , WiMAX Antennas, Wlan Antennas, 5GHz/5.8GHz Antennas; indoor outdoor antennas ,

  base station antennas , CPE Antennas , RFID Antennas , repeater antennas, indoor distributed antennas,

  decorative antennas ; RF Cable , RF Connectors , RF Pigtail Cables ; and also passive RF Components

  such as Splitters Couplers , Surge Lightnings Protectors , etc .

  Based on the strict quality control , now Deertom has won a lot of big companies trust , like China Mobile , China

  Telecom , China Unicom , Huawei , ZTE, etc .

  Our markets also cover worldwide countries .

  But we never stop

  innovating , instead we are devoting ourselves to providing our customers the better quality , service with

  competitive price .
