Gsm Gps Combination Antenna 28dbi Sma Fme Connector Car - China

price: 6.00 Dollar US$

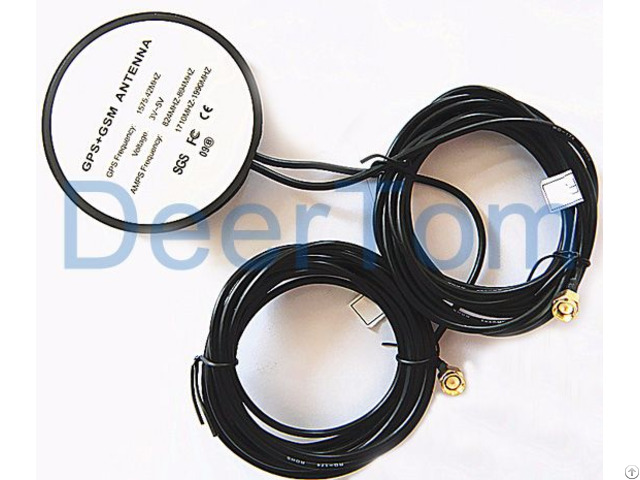

Gsm Gps Combination Antenna 28dbi Sma Fme Connector Car

Products Photos Catalog Gsm Gps Antenna 28dbi Photos Catalog

Model DT-GPS-GSM-25-2C

Frequency Range 1575.42±5MHz 806-960/1710-1990MHz

Gain before Amplified 4.5dBi 2dBi

Gain after Amplified 25dBi N/A

VSWR ≤2.0

Noise <1.5dB N/A

Polarization RHCP Vertical

Nominal Impedance 50Ω

Operating Current 20mA (max25mA) N/A

Power Supply +3～+5.5V DC N/A

MECHANICAL

Connector SMA or customized SMA or customized

Cable 3 meters RG174 or customized

Antenna Size Φ72*14mm

Weight 120g

Installation Way Magnetic Mount


Company Contact:


  • Phone: 8615019441310

  • Address: No8th,Ailian Industrial Zone,Longgang District, Shenzhen , Guangzhou , China

  • Email: Email


Published date: August 8, 2016

  • Business Description: Shenzhen Deertom Technology Co., Ltd was founded in October 2000, it is one of the famous telecommunication

    company which specializes in designing and manufacturing all kinds of communication antennas , RF Cables,

    RF Connectors, RF Components , etc .

    Our main factory is located in Shenzhen Citry , owns a manufacture area

    of 50000 square meters .

    By following of the ISO9001 standard management systems , now Deertom has obtained many honors and

    certifications like RoHS and CE .

    Our main products include TV Antennas, VHF/UHF Antennas, CDMA Antennas,

    GSM Antennas, DCS Antennas, PCS Antennas, GPS Antennas, 3G UMTS Antennas, WIFI Antennas,

    4G/LTE Antennas , WiMAX Antennas, Wlan Antennas, 5GHz/5.8GHz Antennas; indoor outdoor antennas ,

    base station antennas , CPE Antennas , RFID Antennas , repeater antennas, indoor distributed antennas,

    decorative antennas ; RF Cable , RF Connectors , RF Pigtail Cables ; and also passive RF Components

    such as Splitters Couplers , Surge Lightnings Protectors , etc .

    Based on the strict quality control , now Deertom has won a lot of big companies trust , like China Mobile , China

    Telecom , China Unicom , Huawei , ZTE, etc .

    Our markets also cover worldwide countries .

    But we never stop

    innovating , instead we are devoting ourselves to providing our customers the better quality , service with

    competitive price .
