H1102nl 10 100m 16pins Lan Transformer - China

price: 0.35 Dollar US$

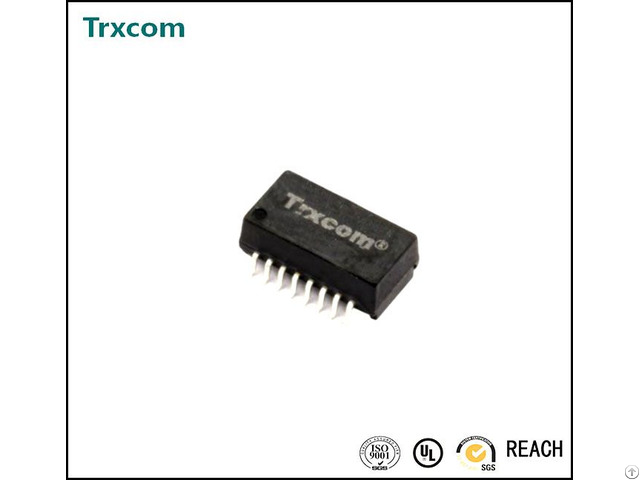

H1102nl 10 100m 16pins Lan Transformer

Products Photos Catalog H1102nl 100m 16pins Photos Catalog

1 - Speed: 100Base-TX

2 - Package: SMT

3 - Number of Ports: Single

4 - Application-Lan: Ethernet (Non-PoE)

5 - Package Height: 5.994mm

6 - Temperature: 0 to 70

7 - UL, RoHs, Reach, ISO9001: 2015 10/100M Single Port Transformer Modules TRC1102NL 1 - Designed to support application, such as SOHO (ADSL modems), Lan-on-Motherboard(LOM), hub and switches.

2 - Meets IEEE 802.3 specification.

3 - Maximum reflow temperature is 250℃, 5 Sec.

4 - UL certification: File Number E321120 ELECTRICAL APECIFICATIONS @25℃ 1 - Turn Ratio(±3%) TX=1CT: 1CT RX=1CT: 1CT 2 - Inductance OCL: 350uH MIN @ 100KHz 0.1V 8mA DC Bias 3 - Insertion Loss: -1.1 dB MAX @ 1-100MHz 4 - Return Loss: - 16dB MIN @ 1-30MHz - 12dB MIN @ 30-60MHz - 10dB MIN @ 60-100MHz 5 - Cross talk: - 40dB MIN @ 1-30MHz - 35dB MIN @ 30- 60MHz - 30dB MIN @ 60-100MHz 6 - Common Mode Rejection: - 30dB MIN @ 1-100MHz - 20dB MIN @ 50-150MHz 7 - Hipot Test: 1500Vrms 8 - Operation Temperature Range: 0 ℃ TO 70℃


Company Contact:


  • Phone: 8613554918626

  • Address: Minzhi Town, Longhua District, shenzhen , Guangdong , China

  • Email: Email

Published date: June 24, 2019

  • Business Description: The products are widely used in networking and communication equipments such as HUB, PC card, Switch, Route, PC Mainboard, SDH, PDH, IP Phone, Xdsl Modem.

    1) 10/100/1000M LAN pulse transformer and filter

    2) RJ45 connector with 10/100/1000M magnetic

    3) T1/E1, T3/DS3/E3 - STS-1 interface line transformer

    4) ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
