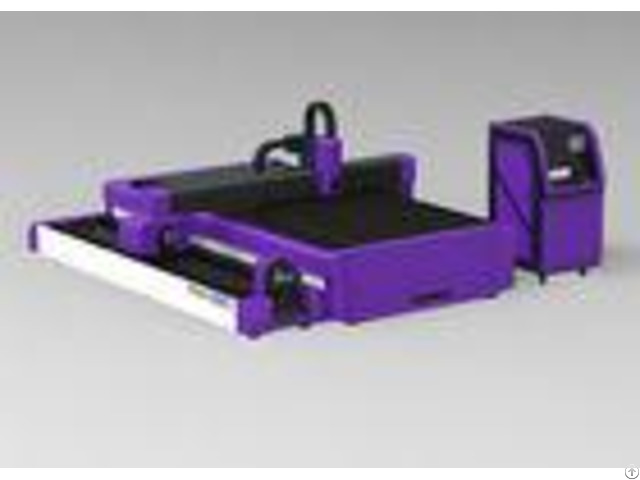

Open Type Metal Fiber Laser Cutting Machine CW 500W Metal Material Cutting Fiber Laser Cutting Machine Technical Parameters: - - - - Laser source | Germany IPG; Maxphotonics | Laser power | 500W | Laser wavelength | 1070nm | Beam quality | <0.373mrad | Fiber Laser cutting head | Swiss Raytools; Germany Precitec | Working life | More than 100000 hours | Motors&Drivers | Yaskawa servo motor made in Japan | Reducer | 3 sets from Germany | Guide Rails | High accuracy PMI brand from Taiwan | Transmit system | Dual Rack & Pinion type | Rack system | TAIWAN KH-TST | Water Chiller | DOLUVO | Control system | Germany PA 8000 / C | Max cutting thickness | 8mm(stainless steel) | 16mm(carbon steel) | 4mm(aluminum) | 2mm(brass) | Position Accuracy | 0.03mm/m | Power Consumption | 12kw/hour | Voltage | 380V/50HZ, 3PH | Carry weight | 1 Ton | Auxiliary Gas for cutting | Oxygen, Nitrogen, Air | - - - - Fiber Laser Cutting Machine Application: - - - - 1 - Sheet metal fabrication | 8 - Hardware tools | 2 - Electrical cabinet | 9 - Advertising | 3 - Elevator | 10 - Furnitures | 4 - Automotive parts | 11 - Kitchenware equipment | 5 - Aviation & aerospace | 12 - Fitness equipment | 6 - Lighting lamps | 13 - Medical equipment | 7 - Metal carfts & decoration | 14 - Agricultural and forestry machinery | - - - - Fiber Laser Cutting Machine Features: 1 - Support different images format as Al, DXF, PLT, Gerber, can read standard ISO G codes from MaterCam, Type3 such nesting software.

2 - Automatically optimization when open or lead in DXF file, like delete repeated line, merge connected lines, recognize in/out cutting file and file sorting out.

User can decide to manually do above work, or let controller do it automatically.

3 - Support conventional picture edit functions 4 - Following what you see is what you get, to set lead in/out, kerf compensation, merge, bridge, over burning, save gap .

etc 5 - Unique function of Preview of cutting work flow.

6 - Support segmental pierce, Progressive pierce, Pre-pierce, power pierce,,, separately setting output laser watt, frequency, laser type, air type, pressure, auto cutting height during pierce and cutting.

7 - Support to set separate lead in/out speed according to adjustment of laser power.

8 - Big storage, allowing user to save all cutting parameters to use it again on same material.

9 - Breakpoint recovery, CNC can return to the point where the cutting stopped, allowing partial file cutting.

It can go to any point to start there after stop or pause.

10 - Same software can support round tube cutting and plate cutting, programming is same, and support intersect cutting.

11 - Support to cut at set height, automatically seek edge, and start from outside of workpiece, or lift up when torch is out of workpiece.

12 - Powerful expanding capability, over 15 PLC process programming, over 30 programmable processes.

13 - Input/output and alarm input are programmable, support wireless remote control, and support internet.

Technical Advantages: 1 - Excellent Laser Beam Quality: Fiber laser has smaller focus diameter and high work efficiency, high accuracy and cutting quality.

2 - High Cutting Speed: cutting speed is more than 20M/min.

3 - Stable Running: adopting the top world import fiber lasers, stable performance, key parts can reach 100, 000 hours; 4 - High Efficiency for Photoelectric Conversion : Compare with CO2 laser cutting machine, fiber laser cutting machine have 3 times photoelectric conversion efficiency.

5 - Low Cost: Save energy and protect environment.

Photoelectric conversion rate is up to 25-30%.

Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.

6 - Free of Maintenance: Fiber optical transmission, fiber line transmission, no need reflect lens, without optical adjustment, save maintenance cost.

7 - Easy Operations: fiber line transmission, no adjustment of optical path; 8 - Super Flexible Optical Effects: compact design, compact and easy to flexible manufacturing requirements.

Applied materials of 500W Fiber Laser Cutting Machine: Fiber cutter is mainly used for carbon steel cutting, mild steel, stainless steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials.

It is an cnc laser cutters can be used to do high precision cutting.

It also can be called fiber cutter machine, fiber optic laser cutter, laser cutter for metal, fiber cutter, carbon steel cutting, cnc laser cutters.

Applied Industry of 500W Fiber Laser Cutting Machine: This laser cutter for metal is applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
