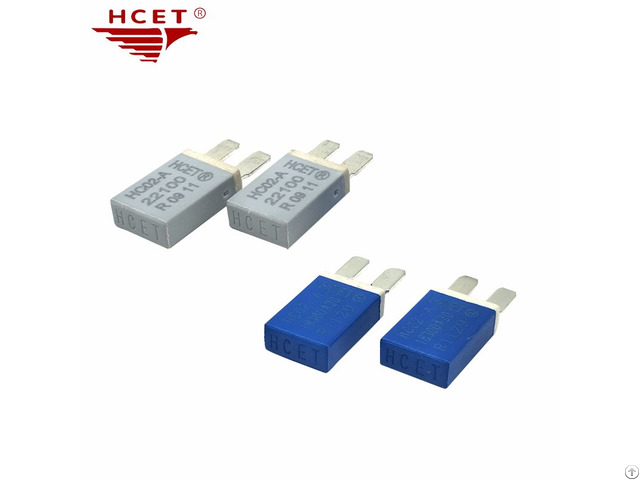

Hc02 Replace Otter Car Window Lift Wiper Motor Over Load Thermal Protector - China

HC02 replace Otter car window lift wiper motor over load thermal protector HC02 series is a precise protector with plastic housing.

It is sensitive to both temperature and current and can protect motor or transformer from over-heating or loading effectively Special Features: 1 - Small size, long life and high reliability; 2 - Protected with overload, plugging turn, or short circuit flow well; 3 - According to the customer request, setting overload trip current, max 30A; 4 - Accurate trip off time can prevent motor from overheating(4~10s); 5 - Each type of parts strictly implemented European ROHS environmental standards; 6 - Terminals are optional and customized.

Electrical Characteristics: 1.1~30amps/15volts DC 2.1~15amps/30volts DC 3.1~30amps/250volts AC 4.1~30amps/125volts AC Technical Parameters: 1 - Action temperature from 60℃~180℃, Every 5 ℃ a specification.

Temperature is optional and customized.

2 - Temperature tolerance: ±8℃, ±10℃.

3 - Trip off current range: 1~30A.

4 - Trip off time: 4~10s.

Main Applications are as follows: 1 - Window motor, Skylight and aerial motor.

2 - Engine of the front and rear windshield wipers, slide door start and regulator engine.

Company Contact:

• Posted By: Nanjing Haichuan Electroic Co.,Ltd

• Phone: 18013321277

• Address: No. 1202, Liuxin Road,Luhe Development, Nanjing, Jiangsu, China, Nanjing , Jiangsu , China

• Email:

• Website: http://www.hcet.cn

• Business Description: Nanjing Haichuan Electronic Co., Ltd., located in Nanjing Fourth Bridge Economic Park, is a

  professional company of producting, designing of high-end motor protector, over current protector, thermal protector, high tech enterprise of temperature control switch and temperature controller.

  The company has a complete and scientific quality management system,

  Nanjing Haichuan electronic limited company's good faith,

  strength and quality of products to obtain the unanimous endorsement of the industry.

  Company has the ISO/TS16949 quality management system certification, has a number of

  independent patents, Products pass the UL, VDE, CQC international security certification, the introduction of Japan, Taiwan advanced automation equipment, the production of a wide range of products Application in the glass elevator motor, wiper motor, juice machine, mixer, small tubular motor, power tools, batteries, transformers and other fields.
