Hcet B Series Self Hold Motor Protector - China

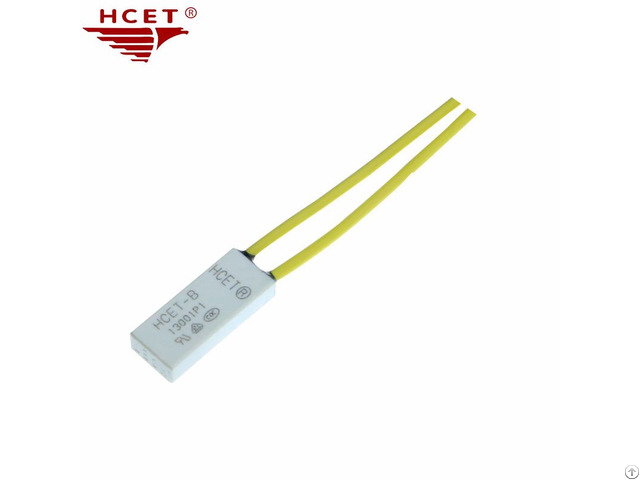

HCET-B Series Self-hold Motor Protector HCET-B (Self-hold) current and overload protector with thermal protection and control

Current overload time exactly, reset after cut power

Special Features:

● Both temperature and current sensitive；

● With hand-reset function；

● According to the customer request, setting overload trip current, max 35A；

● Accurate trip off time can prevent motor from overheating(3~8s)；

● Small size, insulation shell make more flexible, convenient installation；

● Each type of parts strictly implemented European ROHS environmental standards；

Electrical ratings: ● 1-30 amps/15 volts DC

● 1-15amps/30 volts DC

● 1-15 amps/250 volts DC ● 1-30 amps/125 volts DC

Technical parameters：

● Action temperature range: 50℃-180℃.

Temperature is optional and customized.

● Temperature tolerance: ±5℃, ±8℃.

● Trip off current range: 1-35A.

● Trip off time: 3-8s.

( according to customer's requirements)

Applications:

● Cleaner, pulverizer, agitator, mower.

● Electric power tool, snow sweeper

● Wash machine, home appliance, heater element

Company Contact:

• Posted By: Nanjing Haichuan Electroic Co.,Ltd

• Phone: 18013321277

• Address: No. 1202, Liuxin Road,Luhe Development, Nanjing, Jiangsu, China, Nanjing , Jiangsu , China

• Email:

• Website: http://www.hcet.cn

• Business Description: Nanjing Haichuan Electronic Co., Ltd., located in Nanjing Fourth Bridge Economic Park, is a

  professional company of producting, designing of high-end motor protector, over current protector, thermal protector, high tech enterprise of temperature control switch and temperature controller.

  The company has a complete and scientific quality management system,

  Nanjing Haichuan electronic limited company's good faith,

  strength and quality of products to obtain the unanimous endorsement of the industry.

  Company has the ISO/TS16949 quality management system certification, has a number of

  independent patents, Products pass the UL, VDE, CQC international security certification, the introduction of Japan, Taiwan advanced automation equipment, the production of a wide range of products Application in the glass elevator motor, wiper motor, juice machine, mixer, small tubular motor, power tools, batteries, transformers and other fields.
