Hfj11 2450e L12rl Ykjd 8099nl Rj45 Modular Connectors - China

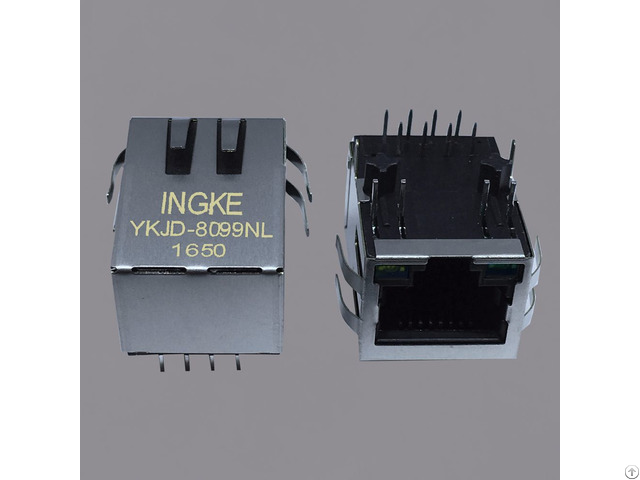

Ingke YKJD-8099NL 100% cross HFJ11-2450E-L12RL RJ45 Modular Connectors Part Number : HFJ11-2450E-L12RL

Made in China: YKJD-8099NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green - Yellow

Number of Cores per Jack : 4

Shielding : Shielded, EMI Finger

Features: Board Lock

Tab Direction : Down

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 30µin (0.76µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

HFJT1-1G20C3-L55RL HFJT1-1G20C3-L71RL HFJT1-1G20C3-L72RL HFJT1-E1G16C3RL HFJT1-E1G16C3-L11RL HFJT1-E1G16C3-L12RL HFJT1-E1G16C3-L17RL HFJT1-E1G16C3-L51RL HFJT1-E1G16C3-L55RL HFJT1-E1G16C3-L71RL HFJT1-E1G16C3-L72RL HFJT1-E1G20C3RL HFJT1-E1G20C3-L11RL HFJT1-E1G20C3-L12RL HFJT1-E1G20C3-L17RL HFJT1-E1G20C3-L51RL HFJT1-E1G20C3-L55RL HFJT1-E1G20C3-L71RL HFJT1-E1G20C3-L72RL HFJT1-1GPRL HFJT1-1GP-L11RL HFJT1-1GP-L12RL HFJT1-1GP-L17RL HFJT1-1GP-L51RL HFJT1-1GP-L55RL HFJT1-1GP-L71RL HFJT1-1GP-L72RL HFJT1-1GHPRL HFJT1-1GHP-L11RL HFJT1-1GHP-L12RL HFJT1-1GHP-L17RL HFJT1-1GHP-L51RL HFJT1-1GHP-L55RL HFJT1-1GHP-L71RL HFJT1-1GHP-L72RL HFJT1-1GPERL HFJT1-1GPE-L11RL HFJT1-1GPE-L12RL

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: +8615920079718

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
