Hfj11 Lghrpe L21rl Ykgd 1119nl Single Port Gigabit Tab Down Poe Magnetic Rj45 Connectors - China

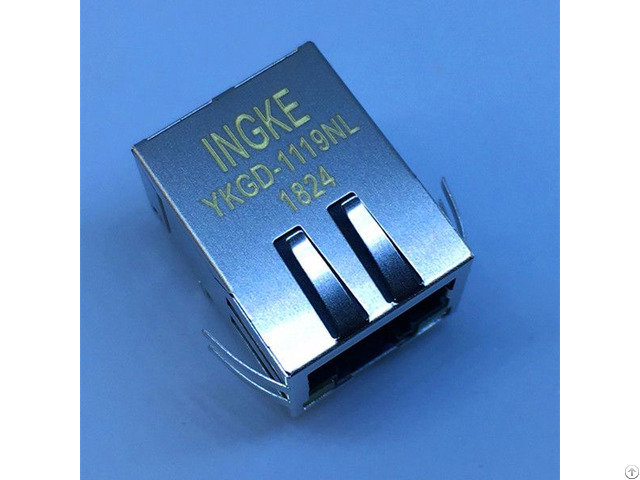

Ingke YKGD-1119NL 100% cross HFJ11-LGHRPE-L21RL Single Port Gigabit Tab-Down POE+ Magnetic RJ45 Connectors Part Number : HFJ11-LGHRPE-L21RL

Made in China: YKGD-1119NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100/1000 Base-T, AutoMDIX, Power over Ethernet+ (PoE+)

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Yellow - Green

Number of Cores per Jack : 8

Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Down

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 15µin (0.38µm)

Flammability Rating: UL 94 V-0

Shield Material : Copper Ally

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

HFJT1-1GHPERL HFJT1-1GHPE-L11RL HFJT1-1GHPE-L12RL HFJT1-1GHPE-L17RL HFJT1-1GHPE-L51RL HFJT1-1GHPE-L55RL HFJT1-1GHPE-L71RL HFJT1-1GHPE-L72RL HFJT1-1G01RL HFJT1-1G01-L11RL HFJT1-1G01-L12RL HFJT1-1G06RL HFJT1-1G06-L11RL HFJT1-1G06-L12RL HFJT1-1G11RL HFJT1-1G11-L11RL HFJT1-1G11-L12RL HFJT1-1G16RL HFJT1-1G16-L11RL HFJT1-1G16-L12RL HFJT1-1G41RL HFJT1-1G41-L11RL HFJ12-1G41ERL HFJ12-1G41ER-L11RL HFJ12-1G46ERL

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: +8615920079718

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
