High Frequency Electronic Tuning Fork Crystal For Credit Card Clearing Machine - China
price: check with company for price

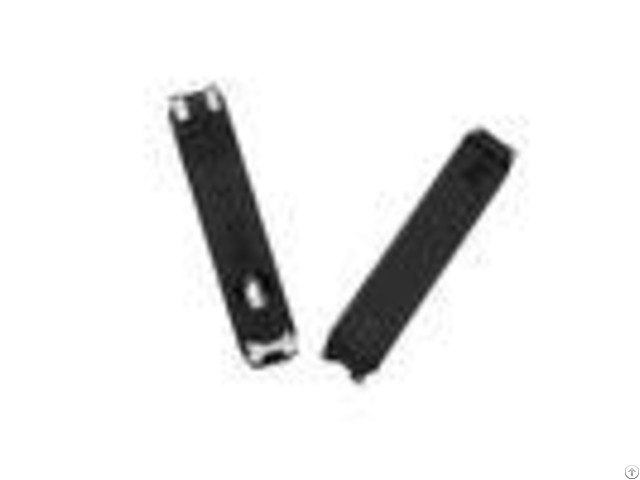

32.768KHz 20ppm MC-146 Tuning Fork Crystal 32.768 khz Crystal Oscillato product application 1, Blood glucose meter 2, Credit card clearing machine 3, Preparatory clock for various microcomputers product features Wide Frequency range 2pin Resonator, small size.
Lead-free production and RoHS compliance Standard Environmental Condition: Environmental Temperature: 15~35 Humidity: 45%~85% Atmospheric pressure: 86~106KPa Operating Temperature Range: -20~70 Crystal Frequency & Resistance will be tested under the following conditions, Unless extra requirments: standard temperature(252) after heat balance.
Storage Temperature Range: -40~+85 Mechanical test: The quartz crystal unit shall be subjected to normal atmospheric conditions for 1hr before being tested.
Dropping Test: The Units are measured for its frequency and resistance in accordance with Table1 & without mechanical damage, after allowing the crystal to fall freely.
From 75 cm of height 3 times on the firmed wood.
Vibration Test: The Units are measured for its frequency and resistance in accordance with Table 1&without mechanical damage afer subjectiong to 2hrs of vibration with 0.75mm amplitude with 10~55Hz frequency sweep 20 times.
Sealing Tightness Find Lead Test: 110-8atmcc/S by Helium mass-mass-spectrometer detector, and vacuum and reach 110-3Pa Resistance to Soldering Heat: The Units are measured for its frequency and resistance in accordance with Table 1 after dipping into molten solder with the temperature of 32010For 3~4 secs and at a depth up to a point 2.0mm from the base root.
Product specification - - - - Type | MC-146 | Frequency Range(KHZ) | 32.768KHZ | Frequency Tolerance(at25) | 20PPm at25+/-2 | Frequency Stability vs.
Temp(FL-T) | -0.0410-6/2 Max | Operating Temperature range | -20~+70 -40~+85 | Storage Temperature range | -45~+80 | Temperature Characteristics | 20PPm | Load Capacitance | 8 to 20 Pf or Serles | Aging | 3 PPm/year | Insulation Resistance | 500M(DC100V15V) | - - - - Refluence examination Frequency change: 5ppm 4.2.3 Temperature Shock: The Units are measured for its frequency and resistance in accordance with Table 1 .
FAQ Packing 9000pcs/tape.
Samples and technical support can be provided free of charge.
Company Contact:
- Posted By: SHENZHEN XINTIANYUAN ELECTRONICS CO.,LTD
- Phone: 86-755-81785287
- Address: 5 Floor,No.1 building,Tangtou Hongfa Industrial Garden, Shiyan, Baoan District, Shenzhen, Shenzhen , Guangdong , China
- Email:
Published date: May 18, 2018
- Business Description: The new Tianyuan is specialized in the quartz crystal, crystal, crystal, a national high-tech enterprise, crystal active components and TFT LCD display R & D, design, manufacturing, marketing and service as a whole, has a thousand grade purification workshop, advanced production equipment.
