High Precision Smd Crystal Oscillator 16 000mhz For Bluetooth Headset - China

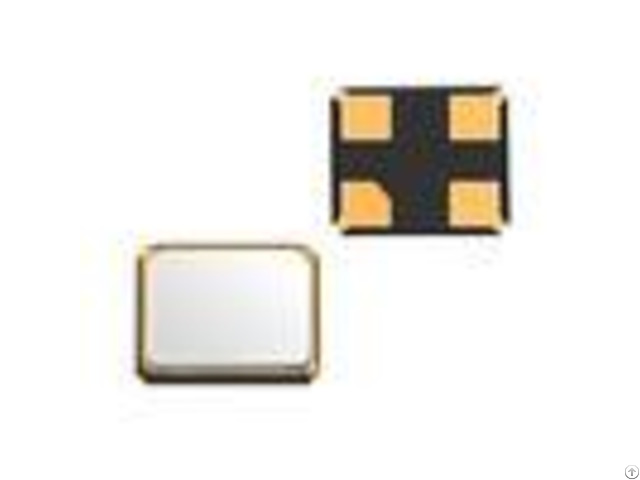

SMD crystal Oscillator 2016 16.000MHZ High Precision Small Size product application 1, 2.4G Bluetooth module 2, Car reversing radar, navigation 3, Bluetooth headset product features Passive crystals require an oscillator in the DSP chip, and there is a recommended connection method on the datasheet.

No passive crystal voltage, the signal level is variable, that is, according to the oscillation circuit to decide, the same crystal can be applied to a variety of voltage, can be used for a variety of different clock signal voltage requirements DSP.

Standard Environmental Condition: Environmental Temperature: 15~35 Humidity: 45%~85% Atmospheric pressure: 86~106KPa Operating Temperature Range: -20~70 Crystal Frequency & Resistance will be tested under the following conditions, Unless extra requirments: standard temperature(252) after heat balance.

Storage Temperature Range: -40~+85 Mechanical test: The quartz crystal unit shall be subjected to normal atmospheric conditions for 1hr before being tested.

Dropping Test: The Units are measured for its frequency and resistance in accordance with Table1 & without mechanical damage, after allowing the crystal to fall freely.

From 75 cm of height 3 times on the firmed wood.

Vibration Test: The Units are measured for its frequency and resistance in accordance with Table 1&without mechanical damage afer subjectiong to 2hrs of vibration with 0.75mm amplitude with 10~55Hz frequency sweep 20 times.

Sealing Tightness: Find Lead Test: 110-8atmcc/S by Helium mass-mass-spectrometer detector, and vacuum and reach 110-3Pa Resistance to Soldering Heat: The Units are measured for its frequency and resistance in accordance with Table 1 after dipping into molten solder with the temperature of 32010For 3~4 secs and at a depth up to a point 2.0mm from the base root.

product advantage High Quality Produce with SGS, ROHS(JDS OR OEM ) ; High production capacity; Professional Electronics Components supplier and over 17 experience TECH Advanced production line and test equipment from USA, JP, etc.

Product specification - - - - Type | SMD2016 | Frequency Range(MHZ) | 16.000MHZ | Frequency Tolerance(at25) | 10PPm, 5PPm at25+/-2 | Frequency Stability vs.

Temp(FL-T) | 10PPm, 20PPm, 30PPm | Operating Temperature range | -20~+70 -40~+85 | Storage Temperature range | -45~+80 | Temperature Characteristics | 10PPm 20PPm | Load Capacitance | 8 to 20 Pf or Serles | Aging | 3 PPm/year | Insulation Resistance | 500M(DC100V15V) | - - - - Dimension Refluence examination Frequency change: 5ppm FAQ Packing 3000pcs/tape.

Samples and technical support can be provided free of charge.
