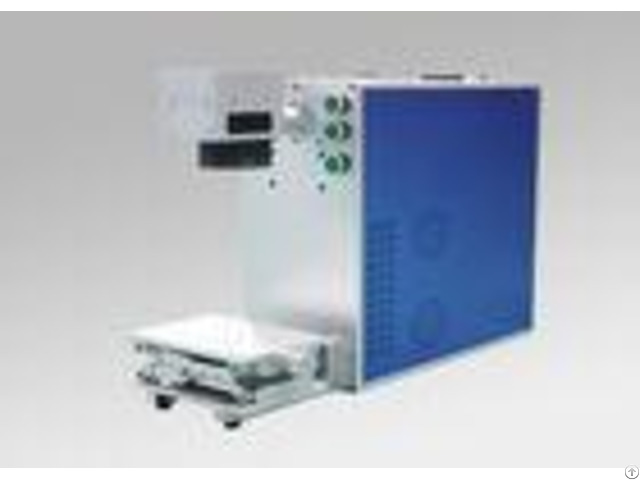

High Speed Portable Fiber Laser Marking Machine 20w 30w 50w For Metal - China

Main Features: Fiber laser marking machine can be used for marking logo, serial number, bar code and other beautiful patterns on any metallic materials such as stainless steel, titanium, brass, gold, silver, aluminum and lots of engineering plastic products such as mobile cover & charger, consume electronics housing and etc.

Our laser marking machine adopts the best quality fiber laser source in the world.

We have 10w, 20w, 30w and 50w for optional.

The estimated life for laser source will be around 100, 000hours, which is 10 times longer life than diode laser and 2 times longer life than other fiber laser source.

This Portable desktop Fiber metal Laser Marking Machine is very easy to use, small, light, moveable.

It is your best choice.

Technical Parameters: - - - - Product | Fiber Laser Marking Machine | Fiber Laser Brand | Standard: MAX | Fiber Laser Lifetime | 100, 000 hours | Fiber Laser Power | 10W, 15W, 20W, 30W, 50W, 100W | Beam Quality | M21.2 | Max.

Marking Speed | 12000mm/s | Fiber Laser Wavelength | 1064nm | Marking Area | Standard: 110mm*110mm Optional: 70mm*70mm, 150mm*150mm, 200mm*200mm, 300mm*300mm | High-speed Galvanometer | Yes | Lens | F-Theta Lens | Fiber Laser Repetition Frequency | 20KHz-80KHz | Minimum character | 0.05mm | Marking Depth | 5mm | Repeated Accuracy | 0.001mm | Minimum Linewidth | 0.01mm | Volt | 110V, 220V, or according to your request | Cooling Mode | Air Cooling | Graphic Format Supported | PLT, DXF, DXP, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF, DST, DWG, LAS, etc | Software Supported | CORELDRAW, AUTOCAD, PHOTOSHOP, etc | System Supported | Windows, MAC OS | Operating Ambient Temperature | 5C-45C | Marterial Supported | Metal and Some Non-metal | Marking Software | EZCAD | Desktop Computer | Yes | Training Videos, User Manua | Yes | Warranty | 2 years | Fiber Test Results | Yes | Certificates | FDA, CE, ISO, CCC, PSE, IC, RoHS, EUT, FC | Control Interface | Standard USB 2.0 | Size (L*W*H) | 650mm*210mm*500mm | Weight | 35KG | Optional | Laptop, Rotary Device | - - - - Accessories: Materials Applications: Metals and some nonmetal: Engraving data, factory number, production date, dial on Metals(Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card) Plastic: engineering plastic and hard plastic, etc.

Used in electronic components integrated circuits, mobile communications, precision instruments, glasses watches and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc Applicable Material: - - - - Material | CO2 Laser machine | Material | fiber laser machine | Wood | | Aluminum | | Acryic | | Stainless Steel | | Fabric | | ABS | | Glass | | Brass | | Coated Metals | | Carbon Fiber | | Ceramic | | Carbon Nanotube | | Delrin | | Cobait Chorme Steel | | Cloth | | Copper | | Leather | | Colored Delrin | | Marble | | Diallyl Phthalate | | Matte Board | | Gless Filled PPEK | | Melamine | | Gless Filled Telfon | | Paper | | Magnesium | | Mylar | | Metal Plated Ceramics | | Press Board | | Molybdenum | | Rubber | | Mild Steel | | Wood veneer | | Nylon | | Fiber Glass | | Polybutylene Terephthalate | | Paintde Metals | | Polysulphone | | Title | | PET | | Plastic | | Santoprene | | Cork | | Silicon Carbide | | Corian | | Silicon Steel | | Anodized Aluminum | | Silicon Wafers | | - - - -
