Hot Dip Galvanized Dead End Clamp Silver White Malleable Iron 1 3 7 1kg Weight - China

price: check with company for price

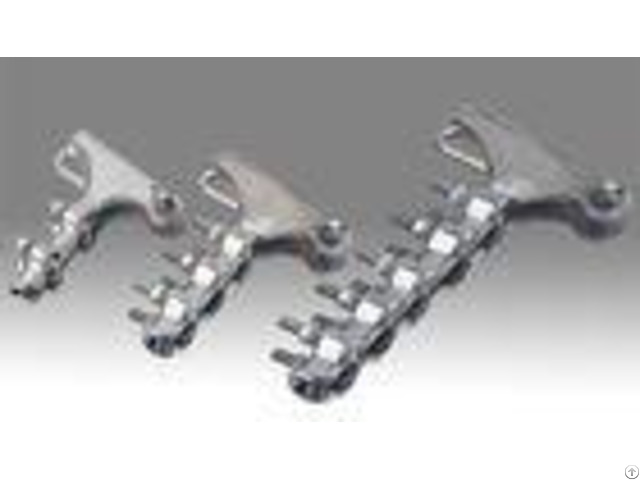

Hot Dip Galvanized Dead End Clamp Silver White Malleable Iron 1 3 7 1kg Weight

Products Photos Catalog Dip Galvanized Dead Photos Catalog

Bolt Type Silver White Hot-dip Galvanized Strain Clamp Dead End Clamp Quick Details # Place of Origin: Guangdong, China (Mainland) # Brand Name: GZXYHY # Model Number: NLD # Malleable iron: Silver white # Type: Bolt Type # Certification: ISO9001: 200 0 Packaging & Delivery Packaging Details: International export package Delivery Time: Within three months Descriptions Bolt type pole transmission line hardware strain clamp is used in high voltage pole line to connect power fitting string or insulators.

It also can fix the guy wire terminals on poles.

Moreover, it bears all the tension of conductors, ground wires and lighting conductors.

The clamp body and keepers are aluminium alloy, the cotter-pin is stainless steel, the other parts are hot-dip galvanized steel.

Characteristic: High tensile strength long elongation hot dip galvanized Specifications - - - - Catalog No.

| Conductor Dia.

(mm) | Dimensions(mm) | U Bolt | Failure Load (kN) | Weight (kg) | M | C | L1 | L2 | R | Qty(pc) | Dia(mm) | NLD-1 | 5.1-10.0 | 16 | 18 | 150 | 120 | 6.5 | 2 | 12 | 20 | 1.3 | NLD-2 | 10.1-14.0 | 16 | 18 | 207 | 135 | 8.0 | 3 | 12 | 40 | 2.4 | NLD-3 | 14.1-18.0 | 18 | 22 | 310 | 160 | 11.0 | 4 | 16 | 70 | 4.6 | NLD-4 | 18.1-23.0 | 18 | 27 | 375 | 200 | 12.5 | 4 | 16 | 100 | 7.1 | - - - -


Company Contact:


  • Phone: 86-20-82970993

  • Address: Shihushan,Yonghe Village,Xintang Town,Zengcheng,Guagnzhou City,Guangdong Province,P.R.China-511356 , Guagnzhou , Guangdong , China

  • Email: Email


Published date: March 12, 2018

  • Business Description: Fogang Xinyuan is the solo manufacturer for ACMCC conductor (Aluminium Conductor Multi-strand Carbon Fiber core) in China.

    ACMCC is designed for double capacity of power transmission.

    ACMCC Conductors can meet the requirements of ASTM, EN, BS and IEC etc.
