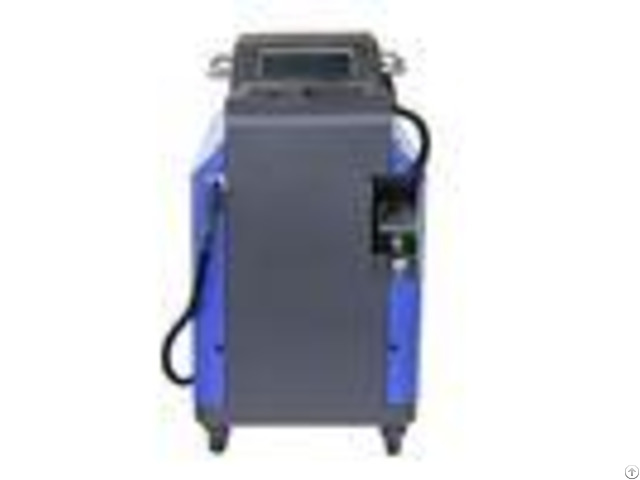

Industrial 100w Pulsed Laser Cleaning Machine Forced Air Cooling System - China

100w Pulsed Handhold Fiber Laser Cleaning Machine for metal cleaning industry Laser cleaning New technology, green and environmental.

Long-focus cleaning laser source has high surface roughness and high tolerance range of processing height on the workpiece, not only can be used in a stable industrial enviroment, more suitable for complex ourdoor fine cleaning; the use of special mode laser, both to ensure the high tolerance range of non-stable environment, but also efficient removal of rust stains with no hurt to base material.

Technical Parameters: - - - - Characteristics | Test Condition | Min.

value | Typical value | Max.

value | Unit | Operating Mode | Pulse | Polarization | Random | Laser Beam Mode | Customized for cleaning | Output Power | 100% output power | 99.9 | 100 | 110 | W | Power Tunable Range | | 50% | | 100% | | Central Wavelength | 100% output power | 1060 | 1064 | 1068 | nm | Pulse Width | 100% output power | 80 | 100 | 160 | ns | Long Time Power Stability | 100% output power | | 2 | 5 | % | Total Consumption | 480W (AC110V or 220V) | Weight | 22.7KG | Cooling | Forced air | - - - - Typical Application - Rust Removal: - - - - High energy pulsed laser focusing on the surface of object to simulate plasma, continuous irradiation of high-energy plasma instantaneous formation and expansion, resulting in a series of tiny explosions, formating plasma blasting, finally achieve the relativel smooth corrosive layer of boject surface to physical blasting burst, and move through the high speed laser spot to form a plume that will clean the debris to complete the cleaning.

Mainly used in metal rust.

| | - - - - - - - - Base material | Corroded degree (mm) | Cleaning effeciency (mm/s) | Valid focal depth (mm) | Cleaning effect | Base matel damage | Rusty carbon steel cast iron | medium corrosion 0.05mm | 4000 | 45 | good | no | - - - - Typical ApplicationDegrease: - - - - High energy pulsed laser socusing on the surface of object, dirty rust and other irregular structure and dark surface absorpt the laser energy and plasma energy formated by metal surface, is instantaneous vaporization from the base metal.

Mainly used in the mold cleaning and cultural relics repair and other industries.

| | - - - - - - - - Base material | Corroded degree (mm) | Cleaning effeciency (mm/s) | Valid focal depth (mm) | Cleaning effect | Base matel damage | Greasy carbon steel | medium oil pollusion mild rusty | 35000 | 60 | good | no | - - - - Typical ApplicationPaint Removal: - - - - For the paint and the surface of the chemical coating and special process, based on the surface and the base material has different absorption and damage threshold on laser, laser destruct the surface coating after focusing, after air contact, there are a series of complex photochemical reactions, oxidation, The final reaction product is in the form of gas discharge, the special mode of the laser below the masterbatch damage threshold, can peel off the coating, do not hurt the base material.

Mainly used for paint removal and coating stripping.

| | - - - - - - - - Base material | Corroded thickness (mm) | Cleaning effeciency (mm/s) | Valid focal depth (mm) | Cleaning effect | Base matel damage | white metal painting | 0.1 | 1500 | 30 | good | no | - - - - Laser cleaning-working parameters: - - - - Base metal | Surface | Valid focal depth | Effeciency(mm/s) | Effect | cast iron | severe corrosion(0.08mm) | >40 | 3000 | clean surface, no damage | carbon steel | mild corrosion(0.05mm) | >45 | 4000 | clean surface, no damage | stainless steel | oily, slight corrosion | >60 | 30000 | bright surface, no damage | mould steel gear | mild oily with scrap iron | >45 | 5000 | bright surface, no damage | aluminum steel | oxide/ surface spotting | >40 | 3000 | white surface, no damage | stoving varnish ss | white stoving varnish | >30 | 1000 | bright surface, no damage | - - - -
