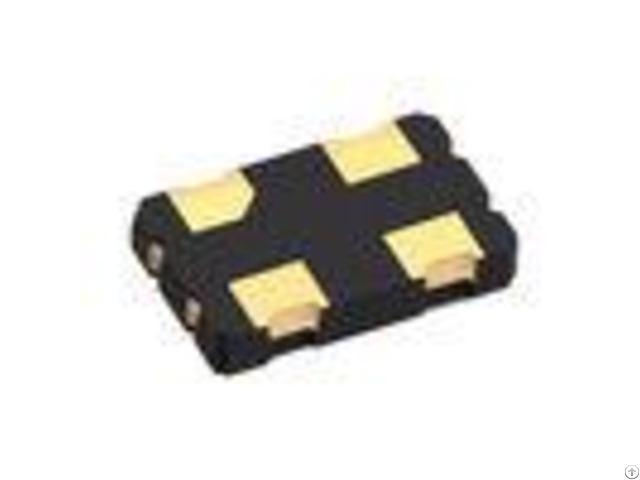

SMD 7.05.0 High-Precision Industrial Aautomation Crystal Oscillator product application Industrial grade crystal is generally used for industrial control panels, automotive electronic equipment and other vulnerable to external instability, poor working environment or difficult to locate products, to make the best use effect and long-term reliability, in the final process of stability.

product features Industrial grade crystal commonly known as: wide temperature high temperature crystal, crystal and so on, is that in industrial grade crystal, at least the working temperature than the civilian level of -20 - 70 degrees wide, its working temperature is -40 and 85 C, chip cutting type is BT, these two points is very critical.

product advantage Industrial grade crystal have higher precision, stronger anti oscillation function and stability, wide temperature range, high temperature resistance.

Product specification - - - - | Item | Test Condition | Specification | 1 - Rating | 1.1 | Output frequency | Nominal frequency at 25 | 33.0000MHz | 1.2 | Supply voltage (Vdd) | Supply voltage range.

| 1.70~3.50V (Typical 1.8V) | 1.3 | Output voltage level(Vp-p) | | 0.8 V min.

Clipped sine wave | 1.4 | Supply current (lop) | Consumption current.

| 2.0 mA max.

| 1.5 | Start up time | 90% Vp-p | 2.0 msec max.

| 1.5 | Output load | Nominal Load (10k//10pf 5% | 0.1 ppm max.

| 1.6 | Operating temperature range | | -40~85 | 1.7 | Storage temperature range | | -40~85 | 2 - Electrical characteristics | 2.1 | Frequency Tolerance | Frequency at 25 2, After 2 times reflow | 2.0 ppm max.

| 2.2 | Frequency stability (Based on frequency @ 25 ) | -30~+85 | 0.5 ppm max.

| -40~-30 | 2.0 ppm max.

| 2.3 | Supply voltage stability | Supply voltage varied 5% at deg C.

| 0.1 ppm max.

| 2.4 | Aging | Frequency drift over 1 year.

| 1.0 ppm max.

| 2 years.

| 1.5 ppm max.

| 5 years.

| 2.5 ppm max.

| 10 years.

| 5.0 ppm max.

| 2.5 | Frequency Slope | -30~+85 | 0.1 ppm/ max.

| -40~-30 | 0.35 ppm/ max.

| | 2.5 | Static temperature hysteresis | Frequency change after reciprocal temperature ramped over the operating range.

Frequency measured before and after at 25 | 0.6 ppm max.

| 2.6 | Harmonics | 2'nd, | -20.0 dBc max.

| 3'rd | -10.0 dBc max.

| 34th, 36th, >69th | -60.0 dBc max.

| 2.7 | Phase noise | 1Hz offset | -50dBc/Hz max.

| 10Hz offset | -80dBc/Hz max.

| 100Hz offset | -105dBc/Hz max.

| 1KHz offset | -130dBc/Hz max.

| 10KHz offset | -145dBc/Hz max.

| 100KHz offset | -150dBc/Hz max.

| - - - - Output wave form Measurement circuit FAQ Packing 1000pcs/tape.
