Ingke Ykgu 4309nl 100 Percent Cross 1368398 2 Integrated Rj45 Jacks - China

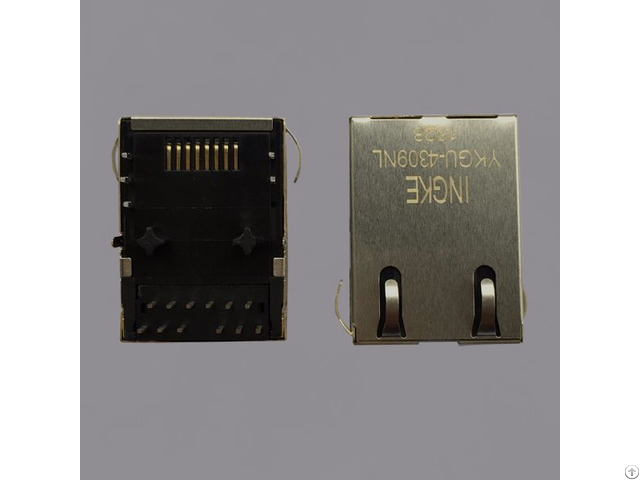

Ingke YKGU-4309NL 100% cross 1368398-2 integrated RJ45 jacks Part Number : 1368398-2

Made in China: YKGU-4309NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100/1000 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green/Orange-Yellow

Number of Cores per Jack : 8

Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Up

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness : 30µin (0.76µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic

Manufacturer: Ingke Technology Co., Ltd Ingke Technology Mass production of the following models;

6610171-6 6610171-1 6368457-3 6368532-2 1840028-2 1-6610128-1 5-6610003-8 1-6610005-1 5-6610126-2 6610005-4 5-6610005-6 5-6610003-2 2-6610144-6 1840242-1 1-1610005-1 1840555-7 1840924-1 1840003-1 6-6610054-1 6-6610022-1 6610176-5 5-6610049-1 1-6610143-1 1-6610049-1 1840541-1 5-6610023-1 1840140-3 6-1840402-7 6610144-8 1-6610005-5 1840130-3 6-6610005-6 1840561-2 5-6610138-1 5-6610075-1 1-1840581-7
