Ingke Ykgu 86149nl Direct Substitute Jg0 0026nl 1x4 Port Magnetic Rj45 Connectors - China

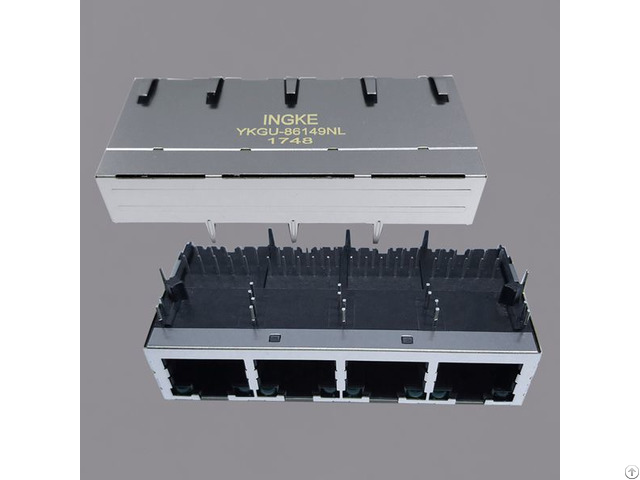

Ingke YKGU-86149NL Direct Substitute JG0-0026NL 1X4 Port Magnetic RJ45 Connectors Part Number : JG0-0026NL Made in China: YKGU-86149NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 4

Number of Rows : 1

Applications : 10/100/1000 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green - Green

Number of Cores per Jack : 8

Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Up

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 30µin (0.76µm)

Flammability Rating: UL 94 V-0

Shield Material : Copper Ally

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;JG0-0031NL J20-0013NL J20-0014NL J1012F21KNL JD1-0003NL JD0-0003NL JD1-0004NL JD2-0011NL JD0-0004NL JD3-0001NL JD3-0002NL JT3-1105HL JT6-1473NL JT6-1480NL J00-0061NL JG0-0032NL JG0-0098NL JG0-0026NL JG0-0027NL JXR0-0001NL J00-0065NL J0G-0007NL JV011I21NLT J0026D01BNL JD2-0010NL J00-0062NL JXD2-0010NL J00-0066NL J0C-0004NL J0C-0004NLT JXD3-0004NL JXD1-0005NL JXD3-0004NL JXD1-0005NL JXD2-0011NL JXD3-0003NL JXD0-0001NL JKM-0010NL JXD0-0002NL J0006D21NL JXD1-0001NL JKM-0011NL JXD3-0001NL JV006I21NL JV006I21NLT J1006F21NL JXD1-0002NL J0C-0005NL J0C-0006NL J0C-0006NLT JKM-0009NL JKM-0008NL JXD3-0002NL J0011D11NL J0012D21NL J1006F01PNL JKM-0001NL JX0011D21NL JV026I21NLT J1026F01NL J0018D21NL

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: +8615920079718

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
