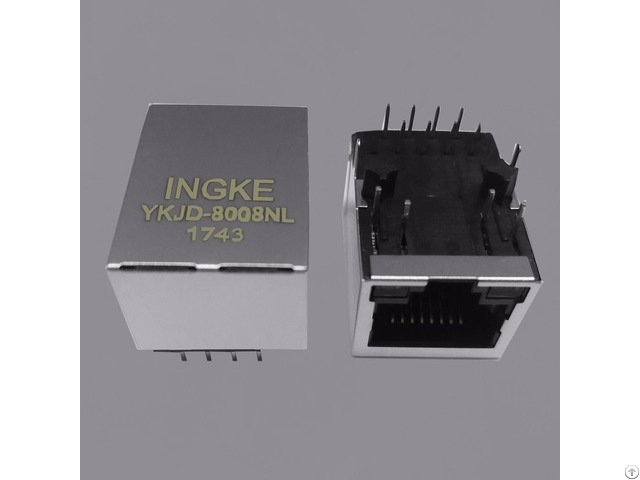

Ingke Ykjd 8008nl 100 Percent Cross J0011d01bnl Through Hole Magnetics Rj45 Jacks - China

Ingke YKJD-8008NL 100% cross J0011D01BNL Through Hole magnetics rj45 jacks Part Number : J0011D01BNL

Made in China: YKJD-8008NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green - Yellow

Number of Cores per Jack : 4

Shielding : Shielded

Features: Board Guide

Tab Direction : Down

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Flammability Rating: UL 94 V-0 Contact Finish Thickness : 15µin (0.38µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

JG0-0031NL J20-0013NL J20-0014NL J1012F21KNL JD1-0003NL JD0-0003NL JD1-0004NL JD2-0011NL JD0-0004NL JD3-0001NL JD3-0002NL JT3-1105HL JT6-1473NL JT6-1480NL J00-0061NL JG0-0032NL JG0-0098NL JG0-0026NL JG0-0027NL JXR0-0001NL J00-0065NL J0G-0007NL JV011I21NLT J0026D01BNL
