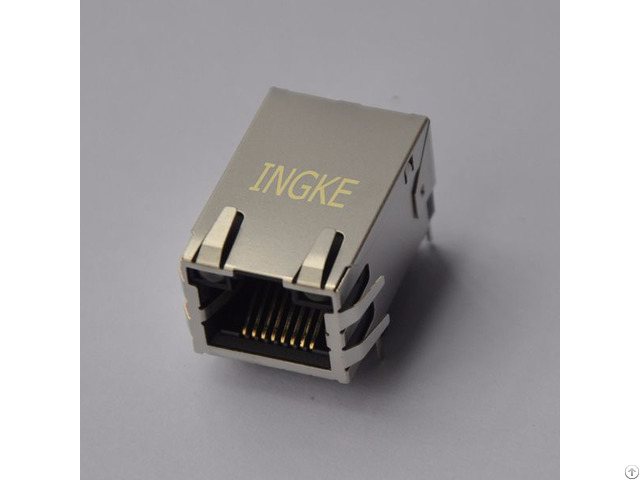

Ingke Ykju 8089nl 100 Percent Cross 74990112116a Rj45 Magnetic Jack Connectors - China

Ingke YKJU-8089NL 100% cross 74990112116A RJ45 Magnetic Jack Connectors Part Number : 74990112116A

Made in China: YKJU-8089NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green - Yellow

Number of Cores per Jack : 4

Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Up

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness : 15µin (0.38µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

7499210123A 7499110123 74990110030 74990111211

7499031001A 7498011002 7499011002A 7499111613

7497010211A 74990110013 7499210001A 7499021121

7499111614A 7499111005 7499511001A 7499011122A

7499211123A 7499031120A 7498011121 7499031211

7499211003 7499411001 7499111614 7499311001

7499511001 7499511611 74990110010

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: +8615920079718

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
