Ingke Ykju 8199nl 100 Percent Cross Arjc01 111002l Through Hole Rj45 Modular Jack - China

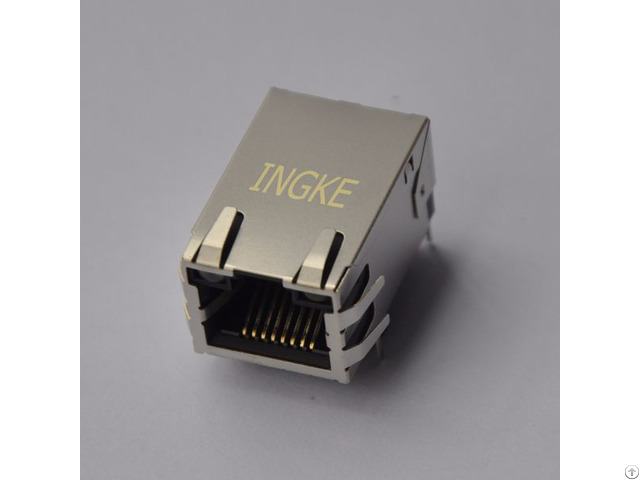

Ingke YKJU-8199NL 100% cross ARJC01-111002L Through Hole RJ45 modular jack Part Number : ARJC01-111002L

Made in China: YKJU-8199NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100 Base-TX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Yellow - Green

Number of Cores per Jack : 5

Shielding : Shielded, EMI Finger

Features: Board Lock

Tab Direction : Up

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness : 30µin (0.76µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic Manufacturer: Ingke Technology Co., Ltd

Our service: 1).

Free sample is available! 2).

OEM & ODM orders are welcomed.

3).

We offer after-sale service for 8 years.

Our Advantage: (1).

OEM factory for Connector more than 10 years.

(2).

Cost reduction, lead time within 1 week, FREE samples.

(3).

After sales services 24*7 to help you solve any kind of problems

(4).

Factory in central province of China, the products has been improved in Mechanical properties, electrical properties and environmental performance for 10-15%, moreover the price are more competitive for 5-10% over the market

(5).

Main advantage products: 10G ICM and M8 connector(Vendor of ST and Qualcomm) Ingke Technology Mass production of the following models;

ARJC01-111002T ARJC01-111002AR ARJP11A-MBSB-A-B-FMU2 ARJP11B-MBSB-A-B-EMU2 ARJP11A-MBSB-A-B-EMU2 ARJP11A-MASA-B-A-FMU2 ARJP11B-MASA-B-A-EMU2 ARJP11A-MASA-B-A-EMU2 ARJC07-111071A ARJC02-111008B ARJC01-111002T ARJC01-111002AR ARJC02-111009D ARJC02-111006K ARJ12A-MASD-A-B-FMU2 ARJ12A-MCSD-MU2 ARJU21A-MCSA-AD-B-EMU2 ARJ12A-MASD-A-B-EMU2
