Ingke Ykku 8322nl 100 Percent Cross Jk0 0136nl 1 Port Rj45 Jacks With Integrated Magnetics - China

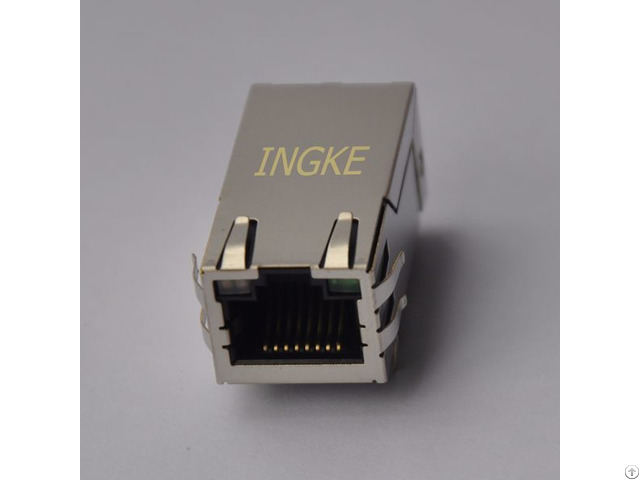

Ingke YKKU-8322NL 100% Cross JK0-0136NL 1 Port RJ45 Jacks with Integrated Magnetics Part Number : JK0-0136NL

Made in China: YKKU-8322NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100/1000 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Yellow, Green - Green

Number of Cores per Jack : 8

Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Up

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 30µin (0.76µm)

Flammability Rating: UL 94 V-0

Shield Material : Copper Ally

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

J8064D649PNL J0026D01 J0026D01B J0026D01F J0026D21E J0026D21F J0026D21G J0033D21 J0035D21B J0048D21M J0073D01B J0C-0004 J0C-0006 J1006F01P J1006F21 J1012F01C J1012F21K J1012F21L J1012F21R J1026F01P J20-0017 J20-0019 J2039H3B J2039H3C J2042H3C J3006G21D J3018G21K J3026G21D J8064D649P J8064E62 J8064E64 J8064E66 J8064E68 JK0-0026 JP006821U JP011821U JP026821U JV006I21 JV026I21 J0C-0003NL JK0-0018NL JK0-0026NL JK0-0014NL JK0-0016NL JK0-0017NL JK0-0020NL JK0-0025NL JC0-0063NL JC0-1011NL J8064E64NL J1N-0012NL J1N-0013NL JGL-0004NL JX80-0022NL J1N-0011NL JXG0-0129NL JX20-0037NL J8064E66NL J1N-0006NL J8064D668ANL J0N-0011NL JX8064D668ANL JC0-0351NL J1N-0005NL J1N-0007NL J0N-0012NL J8064E68NL J1N-0004NL J1N-0008NL J0N-0015NL
