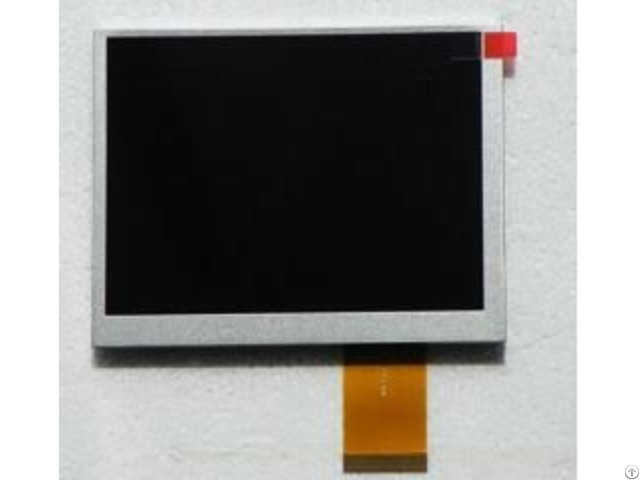

Innolux 5 6 Inch At056tn52 V 3 640x480 Tft Lcd Screen - China

Productor Innolux

MODEL AT056TN52-V.

3

Size 5.6"

Resolution 640*480

Resolution Name VGA

Display scale 4: 3

Pixel Arrangement RGB

Pixel Pitch 0.0588*0.1764 mm

Panel Composition LCD

Technology a-Si TFT-LCD

Panel Features Write LED

Display mode TN, NW, Transmissive

Luminance 200 nits

Contrast Ratio 500: 1

Color 16.7M

Color Saturation 50%

Response 10/15 (Tr/Td) ms

Viewing Angle) 50/70/70/70

The Best View 6 o'clock

White Field Chroma X: 0.310; Y: 0.330

White Field Dynamic 1.33 (9 points)

Scanning Frequency

The kind of Singnal Parallel

Interface Parallel

Singnal Interface Definition DRGB-50P1C8B-110A

Drive-screen voltage 3.3/5.0/15/-10V (VCC/AVDD/AVDD/VGL)

Input Current 1/16/0.12/0.13mA (ICC/IDD/IGH/IGL)

Brand of Singnal Interface FPC

Pitch of Singnal Interface 0.5 mm

Quantity of Singnal Interface 1 pcs

Pin of Singnal Interface 50 pins

Operation Temperature -20 °C ~ 70 °C

Storage Temperature -30°C ~ 80°C

Active Area 112.896*84.672 mm

Display Area 115.70*87.47

Outline 126.50* 100.00*5.70 mm
