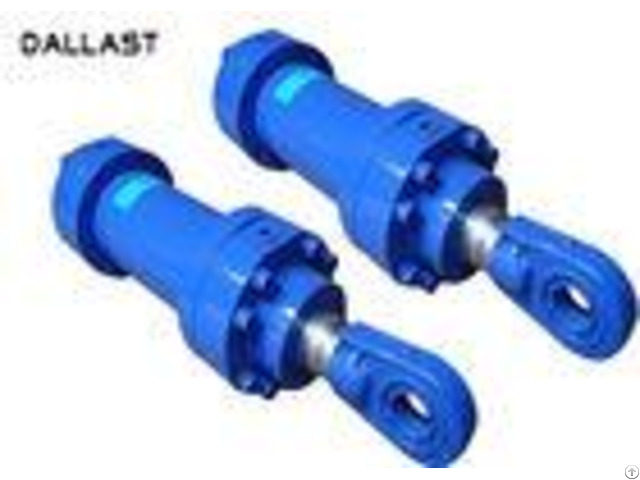

Iso9001 2009 High Pressure Hydraulic Cylinder Double Acting Single Piston Type - China

price: check with company for price

ISO9001-2009 High Pressure Hydraulic Cylinder Double Acting Single Piston Type Product Features: Medium: mineral oil, water - ethylene glycol or other media.

Maximum working pressure: 25Mpa Both ends of the flange, modular structure, easy to manufacture, easy maintenance.

Type Specifications: Common Type A total of 16 bore specifications, each with 2 8 assembly forms, composed of 256 varieties.

C25, D25 series cylinder bore D = 50 ~ 400 (except D = 40) can be equipped with built-in displacement sensor.

Its features: according to the conditions needed to control the hydraulic cylinder in any desired position to send accurate control signals.

Give full play to the hydraulic cylinder mechanization, automation.

With analog, digital and bus and other output methods, action sensitive, rapid response, to achieve a high-speed, accurate industrial automation and control.

The basic parameters in line with ISO standards and GB standards, installation and dimensions in line with international standards of steel mills.

Wide range of uses: This series of hydraulic cylinders is suitable for a variety of industrial sectors, such as metallurgy, mining, lifting, transportation, shipping, forging, casting, machine tools, coal, petroleum, chemical, scientific research, military and so on.

Seals, guides: all domestic can also be used by the user all the imported components.

This high pressure hydraulic cylinder is special product, please send us data.

we can customzied for you.

- - - - Structure | Piston cylinder | Hardness | HRC40-55 | Seal | Merkel, Parker | Temperature | -30C~300C | Working pressure | 16-32mpa | Mounting Type | Front Flange | Plunger | 20#, 45# steel with high frequency quenching | Package | shrink film, pallet, plywood case and carton | Warranty | One year after shipping arrival | Delivery time | 15- 25 days after down payment | - - - -


Company Contact:


  • Phone: 86-755-32948188

  • Address: 1435-1436,area C,building B,Qinghu science park,Longhua District, Shenzhen city,Guangdong province,C, Shenzhen , Guangdong , China

  • Email: Email


Published date: January 15, 2018

  • Business Description: DALLAST team has a set of perfect quality management system and advanced testing process , in the independent design , manufacture , installation , field operation and maintenance has accumulated rich experience .
