J1011f01pnl Single Port Through Hole Tab Up Rj45 Ethernet Connectors 10 100 Base Tx Automdix - China

price: 0.50 Dollar US$

J1011f01pnl Single Port Through Hole Tab Up Rj45 Ethernet Connectors 10 100 Base Tx Automdix

Products Photos Catalog J1011f01pnl Port Hole Photos Catalog

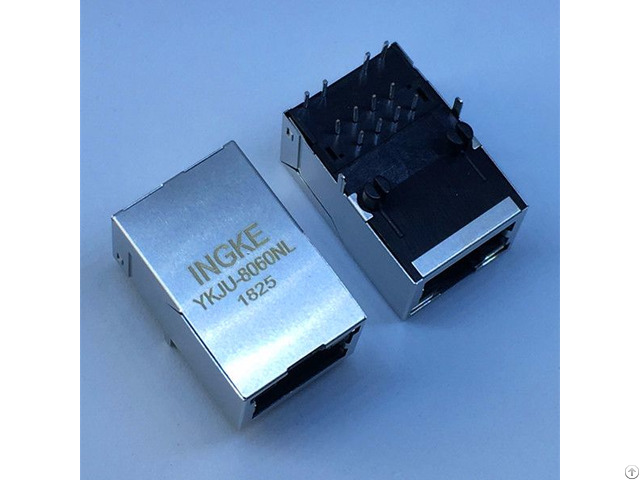

Ingke YKJU-8060NL 100% cross J1011F01PNL Single Port Through Hole Tab-Up RJ45 Ethernet Connectors 10/100 Base-TX, AutoMDIX

Part Number : J1011F01PNL

Made in China: YKJU-8060NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100 Base-TX, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green - Yellow

Number of Cores per Jack : 4

Shielding : Shielded

Features: Board Guide

Tab Direction : Up

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 15µin (0.38µm)

Flammability Rating: UL 94 V-0

Shield Material : Copper Ally

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

JGL-0004NL JX80-0022NL J1N-0011NL JXG0-0129NL JX20-0037NL J8064E66NL J1N-0006NL J8064D668ANL J0N-0011NL JX8064D668AN JXR0-0005NLT J3018G21KNLT J3018G21KNL JXR1-0011NLT JXR1-0015NLT J3026G21DNLT JX30-0005NLT JKM-0003NL JKM-0004NL JKM-0013NL JK0-0144NL JX0026D21NL JXKM-0004NL JX0011D21BNL J3011G21WNL JX0026D21BNL JX30-0005NL JT4-1121HL JK0-0116NL JK0-0144BNL JXK0-0136NL JK0-0177NL JXK0-0190NL JGL-0001NL JT4-1109HL JX80-0019NL JC0-1012NL JTH-0020NL J8064D649PNL JC0-1011NL J8064E64NL J1N-0012NL J1N-0013NL


Company Contact:


  • Phone: +8615920079718

  • Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

  • Email: Email


Published date: June 25, 2018

  • Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

    Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

    Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

    Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
