Jxd6 0002nl Ykju 2267nl 10 100 Base T Automdix Smt Rj45 Female Jack With Magnetics - China

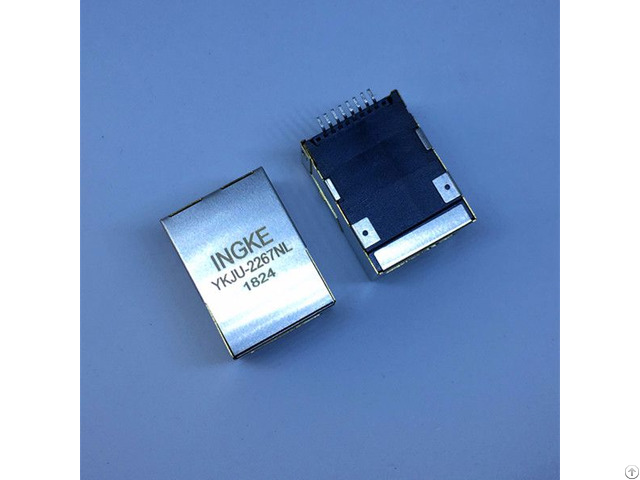

Ingke YKJU-2267NL 100% cross JXD6-0002NL 10/100 Base-T AutoMDIX Tab Up SMT RJ45 Female Jack With Magnetics Part Number : JXD6-0002NL

Made in China: YKJU-2267NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100 Base-T, AutoMDIX

Mounting Type : Surface Mount

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: No

Number of Cores per Jack : 4

Shielding : Shielded

Features: Board Guide

Tab Direction : Up

Contact Material : Copper Alloy

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 30µin (0.76µm)

Flammability Rating: UL 94 V-0

Shield Material : Copper Ally

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

J8064E66 J8064E68 JK0-0026 J0035D21B J0048D21M J0073D01B J0C-0004 J0C-0006 J1006F01P J1006F21 J1012F01C J1012F21K J1012F21L J1012F21R J1026F01P J20-0017 J20-0019 J2039H3B J2039H3C J2042H3C J3006G21D J3018G21K J3026G21D J8064D649P J8064E62 J8064E64

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: +8615920079718

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
