Log Periodic Yagi Antenna Lpda Lpds 9 10dbi Broadband Repeater Booster Amplifier - China

price: 6.00 Dollar US$

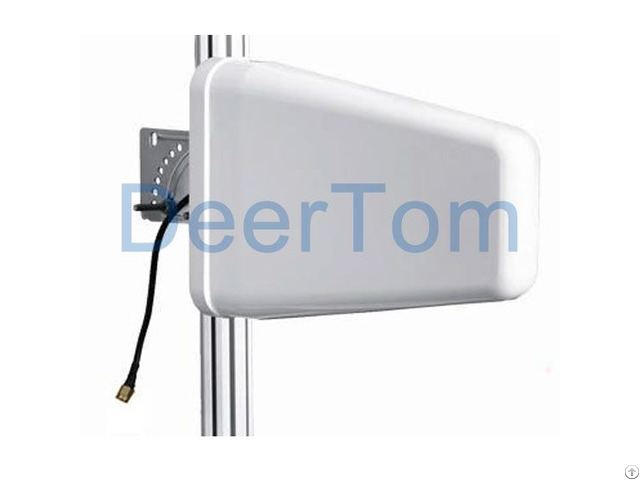

Log Periodic Yagi Antenna Lpda Lpds 9 10dbi Broadband Repeater Booster Amplifier

Products Photos Catalog Log Periodic Yagi Photos Catalog

ELECTRICAL

Model DT-LYA800-2500-10

Frequency Range 806-960/1710-2500MHz

Gain 9/10dBi

Beamwidth H: 90° / 70°, E: 70° / 55°

VSWR ≤1.5

F/B Ratio ≥20dB

Polarization Vertical

Max Power 50W

Nominal Impedance 50Ω

Lightning Protection DC Ground

MECHANICAL

Connector N Female or customized

Antenna Dimension 290*215*65mm

Weight 0.7kg

Mounting Kits L Bracket & U Bolts

Working Temperature -40 ~ + 60℃

Rated Wind Velocity 60m/s


Company Contact:


  • Phone: 8615019441310

  • Address: No8th,Ailian Industrial Zone,Longgang District, Shenzhen , Guangzhou , China

  • Email: Email


Published date: August 8, 2016

  • Business Description: Shenzhen Deertom Technology Co., Ltd was founded in October 2000, it is one of the famous telecommunication

    company which specializes in designing and manufacturing all kinds of communication antennas , RF Cables,

    RF Connectors, RF Components , etc .

    Our main factory is located in Shenzhen Citry , owns a manufacture area

    of 50000 square meters .

    By following of the ISO9001 standard management systems , now Deertom has obtained many honors and

    certifications like RoHS and CE .

    Our main products include TV Antennas, VHF/UHF Antennas, CDMA Antennas,

    GSM Antennas, DCS Antennas, PCS Antennas, GPS Antennas, 3G UMTS Antennas, WIFI Antennas,

    4G/LTE Antennas , WiMAX Antennas, Wlan Antennas, 5GHz/5.8GHz Antennas; indoor outdoor antennas ,

    base station antennas , CPE Antennas , RFID Antennas , repeater antennas, indoor distributed antennas,

    decorative antennas ; RF Cable , RF Connectors , RF Pigtail Cables ; and also passive RF Components

    such as Splitters Couplers , Surge Lightnings Protectors , etc .

    Based on the strict quality control , now Deertom has won a lot of big companies trust , like China Mobile , China

    Telecom , China Unicom , Huawei , ZTE, etc .

    Our markets also cover worldwide countries .

    But we never stop

    innovating , instead we are devoting ourselves to providing our customers the better quality , service with

    competitive price .
