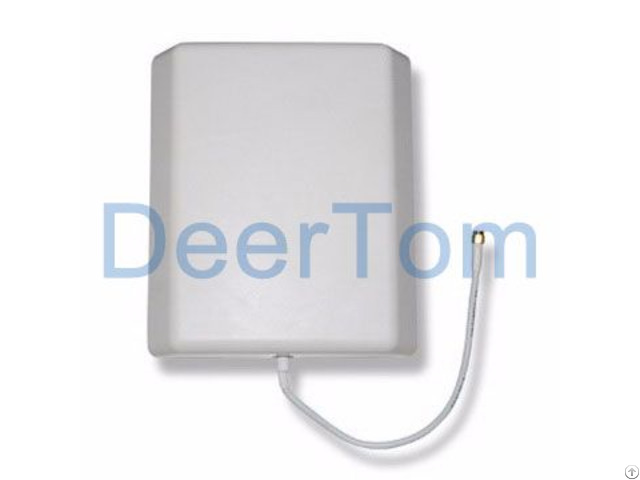

Lte 4g Indoor Outdoor Panel Antenna 8dbi Repeater Booster Amplifier - China

ELECTRICAL

Model DT-PA698-2700-8B

Frequency Range 698-960/1710--2700MHz

Gain 7/8dBi

Beamwidth H: 80±5°, E: 70±5°

VSWR ≤2.0 / 1.5

F/B Ratio ≥13dB

Polarization Vertical

Max Power 100W

Nominal Impedance 50Ω

Lightning Protection DC Ground

MECHANICAL

Connector N Female or customized

Antenna Dimension 220*180*40mm

Weight 0.5kg

Radome Material Waterproof ABS

Rated Wind Velocity 60m/s
