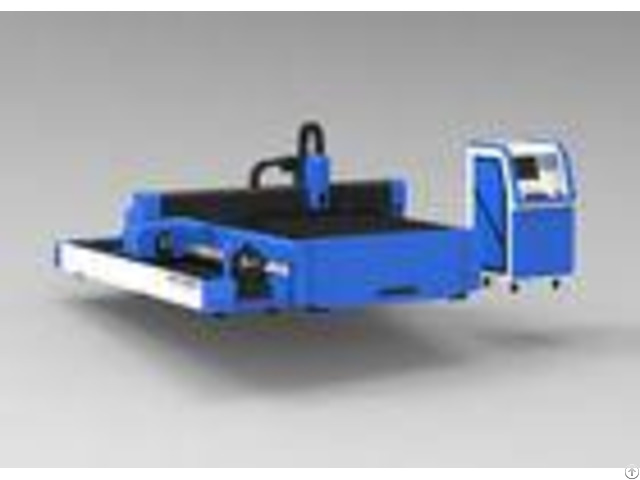

Medium Power Metal Fiber Laser Cutting Machine For Medical Equipment - China

Features of metal laser cutting machines: * The medium-power laser cutting machine with the highest precision in China, it can cut small metal bike design with size of half a coin and good cut 6mm mild steel, 120 holes can be cut within one minute.

* 600 heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate CO2 protection welding, to make sure 20 years usage without deformation.

* Using laser electrical cabinet integration design, cover small area, save space, minimalist design.

* Scrap car symmetrical design, both sides can clean up the waste; Put machine to the romm has no left and right requirements; Pneumatic lifter device to prevent the material from scratching.

* Specially used for cutting 0.5-6mm carbon steel, 0.5-5mm stainless steel, galvanized steel, electrolytic zinc-coated steel sheet, silicon steel and other kinds of thin metal sheets.

1000W can cut 3mm aluminum and 2mm copper.

Machine characters : * Using gantry type mechanic structure, performance is stable .

* Aheadcut USA fiber laser control system, with laser power adjusting function, * This model adopts servo motor driving system.

machine bed movement structure using high accuracy gear to transit, so to ensure the high speed, high precision and high reliability.

* Using Raytools Switzerland fiber laser cutting head, safe and stable.

* Adopts Maxphotonics fiber laser source, which is with imported modular high performance, low processing cost, Eco-friendly .

Technical parameter: - - - - Item | Parameter | Laser type | Fiber laser | Wave length | 1070-1080nm | Electro-optical conversion efficiency | 25-30% | XYZ Route | 3025mm/1525mm/100mm | Material Cutting thickness | 0.2-8mm | Cutting seam width | 0.1-0.2mm | Repeat position accuracy | 0.05mm/500mm | Positioning accuracy | 0.05mm/500mm | Max.

Moving Speed | 60000mm/min | Max.

Accerlation speed | 0.8g | Max.

loading weight | 500kg | Machine weight | 2300kg | Required Power | 220V 50Hz/60Hz | Machine size(L*W*H) | 4500mm*2450mm*1700mm | - - - - Applied Fields of laser cutting machine: Laser Metal Cutting machine is widely used in hardware, precise machinery, automobile components, glasses clocks and watches, precise cutting, medical equipment, instrument and other metal related industry.

It can zarry on non-contact cutting on metal sheet, pipe, especially for stainless steel, sttel plate, diomond saw blades and othermetal materials, it has excellent processiong for the various high-brittle hard alloys.

In the lines of hardware and metal sheet industries, laser cutting technology can be partially replace the line cutting.
