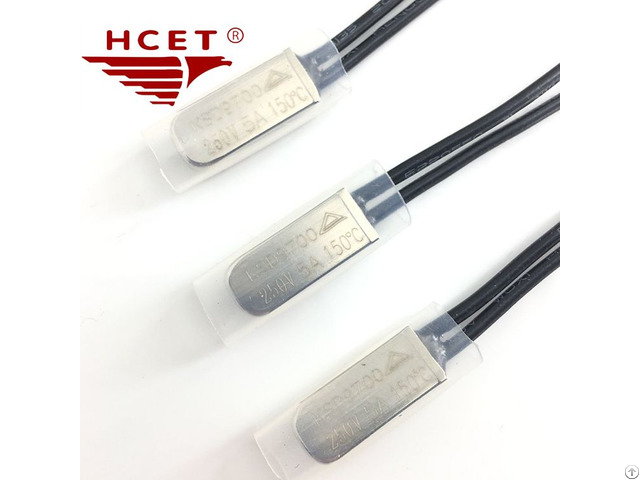

Metal Case Thermal Switch Thermostat For Motor - China

Specifications Thermal protector 1 - Metal case/plastic case 2 - Vacuum cleaner, Dynamical battery, DC motor etc.

3 - Repeatable performance Metal case/plastic case Thermal protector:

1, electrical parameters: 10/250V (resistance loaded), 2, temperature range: 45 ~ 150C

3 - moveable bracket, termnal angle is choice(0, 30, 45, 60, 90)

4, wiring way: insert 0 # (bending terminal 250 ~ 90% % d optional), Insert terminal 187 # (0 ~ 90% % d bending is optional, thickness, 0.8 mm 0.5 optional), 5, service life: 10/250V 6000 cycle, 6, electrical strength: AC1500V 1min diachronic flashover, no, no breakdown, 7, contact resistance than 50m Ω; :

8, insulation resistance: > Ω 100M, 9, forms, closed type: rising temperatures, contacts disconnected, manual reset, Often open type: rising temperatures, contacts through manual reset, 10, protection grade: IP00, 11, earthing ways: by metal shell and device thermostat grounded (earthed) metal parts

Company Contact:

• Posted By: Nanjing Haichuan Electroic Co.,Ltd

• Phone: 18013321277

• Address: No. 1202, Liuxin Road,Luhe Development, Nanjing, Jiangsu, China, Nanjing , Jiangsu , China

• Email:

• Website: http://www.hcet.cn

• Business Description: Nanjing Haichuan Electronic Co., Ltd., located in Nanjing Fourth Bridge Economic Park, is a

  professional company of producting, designing of high-end motor protector, over current protector, thermal protector, high tech enterprise of temperature control switch and temperature controller.

  The company has a complete and scientific quality management system,

  Nanjing Haichuan electronic limited company's good faith,

  strength and quality of products to obtain the unanimous endorsement of the industry.

  Company has the ISO/TS16949 quality management system certification, has a number of

  independent patents, Products pass the UL, VDE, CQC international security certification, the introduction of Japan, Taiwan advanced automation equipment, the production of a wide range of products Application in the glass elevator motor, wiper motor, juice machine, mixer, small tubular motor, power tools, batteries, transformers and other fields.
