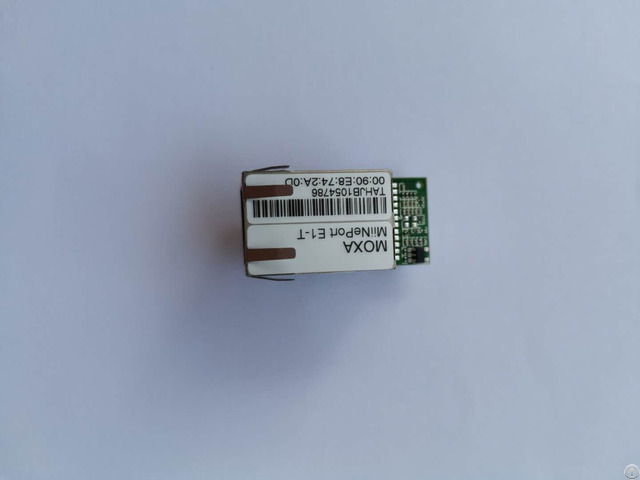

MiiNePort E1-T

MiiNePort E1 Series

Embedded device server for TTL devices, drop-in module, 10/100M with RJ45 connector, -40 to 85°C operating temperature Embedded System

CPU

32-bit Arm Core

Memory

Flash

2 MB

SDRAM

4 MB

Input/Output Interface

Configurable DIO Channels (by software)

1

Digital Input Channels

1

Digital Output Channels

1

Ethernet Interface

10/100BaseT(X) Ports, Auto MDI/MDI-X

8-pin RJ45

Magnetic Isolation Protection

1.5 kV (built-in)

Ethernet Software Features

Configuration Options

Web Console (HTTP), Windows Utility, Telnet Console, Serial Console

Management

ARP, BOOTP, Device Search Utility (DSU), DHCP Client, HTTP, IPv4, SMTP, SNMPv1, TCP/IP, Telnet, TFTP, ICMP

Windows Real COM Drivers

Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8 - 1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

Fixed TTY Drivers

SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5 - x, HP-UX 11i, Mac OS X

Linux Real TTY Drivers

Kernel version: 2.4 - x, 2.6x, 3 - x, 4.2

Android API

Android 3.1 - x and later

Serial Interface

No.

of Ports

1

Serial Standards

TTL

Operation Modes

Real COM mode, TCP Client, TCP Server, UDP mode, RFC2217

Baudrate

50 bps to 230.4 kbps

Data Bits

5, 6, 7, 8

Stop Bits

1, 1.5, 2

Parity

None, Even, Odd, Space, Mark

Flow Control

None, RTS/CTS, XON/XOFF

Serial Signals

TTL

• TxD, RxD, RTS, CTS, RST (reset circuit), GND

NetEZ Technology

NetEZ Functions

ExTrigger, SCM (Serial Command Mode), AutoCFG, MCSC (Multi-Channel Serial Communication)

Power Parameters

Input Current

160 mA @ 3.3 VDC

Input Voltage

3.3 VDC

Physical Characteristics

Dimensions

33.9 x 16.25 x 13.5 mm (1.33 x 0.64 x 0.53 in)

Weight

9 g (0.02 lb)

Form Factor Type

Drop-in modules

Environmental Limits

Operating Temperature

-40 to 85°C (-40 to 185°F)

Storage Temperature (package included)

-40 to 60°C (-40 to 140°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

EMC

EN 55032/24

EMI

CISPR 32, FCC Part 15B Class B

EMS

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV

IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m

IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV

IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV

IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m

IEC 61000-4-8 PFMF

IEC 61000-4-11 DIPs

Environmental Testing

IEC 60068-2-1

IEC 60068-2-3

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6

Declaration

Green Product

RoHS, CRoHS, WEEE

MTBF

Time

5, 515, 294 hrs

Standards

Telcordia SR332
