Opgw Preformed Double Suspension - China

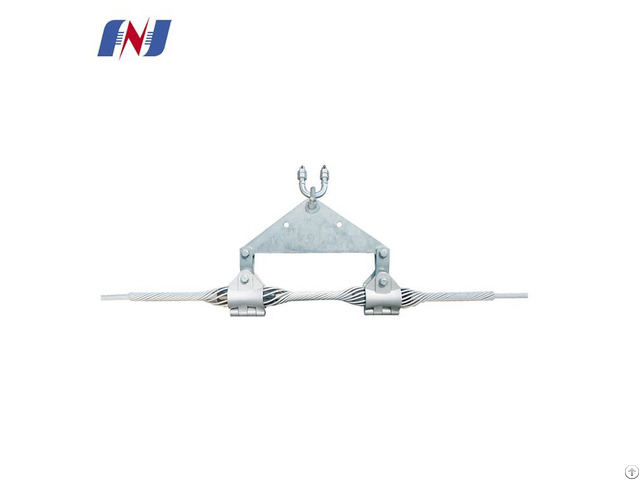

Composition: inner twisted wire, the outer twisted wire, two sets of rubber clip block, two sets of cast aluminum shell and connecting fittings.

Product Description

Composition: inner twisted wire, the outer twisted wire, two sets of rubber clip block, two sets of cast aluminum shell and connecting fittings.

Uses: play a supportive role, the optical fiber composite overhead ground wire (OPGW) are hung on a straight line on the tower.

Features: a.

Suspension OPGW cable with a larger contact area, stress distribution uniform, no stress concentration points, play better on cable protection, at the same time enhancing the stiffness of cables at hanging point location.

b.

there is a better dynamic stress capacity, can provide sufficient grip strength (20% RTS) to maintain OPGW cables in the long run under the conditions of unbalanced load for safe operation.

c.

Suspension of overhanging angle to meet the 30 ° ~ 36 °.

d.

The structure coupled with flexible rubber clip block, enhanced self-damping to reduce abrasion.

e.

rounded end processing, increased corona voltage.

f.

high-quality aluminum alloy material to enhance the mechanical properties of the clamp and corrosion resistance, significantly extended service life.

Technical requirements: meet the DL / T 766-2003 optical fiber composite overhead ground wire (OPGW) with the preformed helical fittings technical requirements and test methods.

Ordering Information: a.

According to the diameter of OPGW cable parameters such as selection of suitable Suspension.

Dual-Suspension is mainly used for large cross rivers, high drop in the valley, heavy ice and other special places.

b.

the number of configurations as follows: 1 set / line tower.

c.

The lay direction of inner twisted wire is opposite with lay direction of the outer twist wire, the standard configuration: Lay direction for OPGW outer twisted wire is right, If left, it should be specified in the order contract.

d.

According the mount point on the tower, select the appropriate link fittings (such as the U-screws, U-type hanging ring, UB clevis etc.

).

e.

Clamp strength is divided into 100kN, 120kN, 160KN and so on.

OPGW preformed helical suspension clamp Model Parameter table:

Model applicable cable diameter

(mm) inner layer twisted wire length(mm) outer layer twisted wire length(mm) Center distance(mm) clamp quality

(kg)

OSXC-** 9.80-14.10 2260 1660 460 12.25

OSXC-** 14.20-16.10 2360 1760 560 13.92

OSXC-** 16.20-20.00 2660 2060 660 17.32 If you are interested, please contact us.
