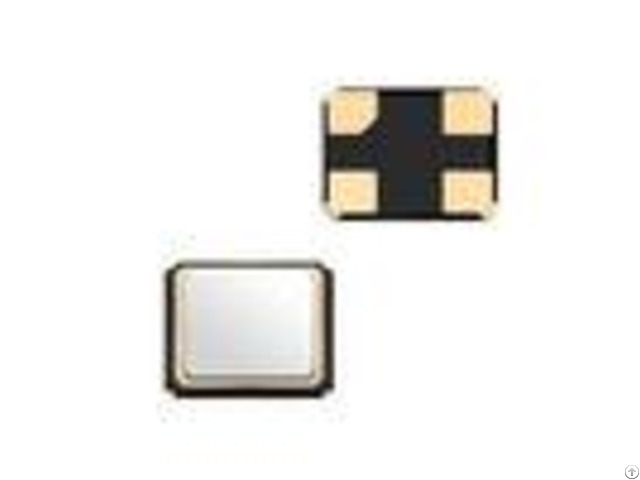

Optical Transceiver Smd Crystal Oscillator 25mhz 3225 4 Pin 10ppm Frequency - China

SMD Crystal Oscillator 25MHZ 3225 4Pin10ppm Made in China Rohs product application 1, The network card chip 2, Network set-top box 3, Optical transceiver product features 25m crystal for the network card section, the network card to provide a working clock, but also for the NVIDIA chip power clocking in the required clock, voltage 1.1-2.2v.

The CrystalIt has the characteristics of stability and anti-interference.

It is widely used in various electronic products.

Mechanical test: The quartz crystal unit shall be subjected to normal atmospheric conditions for 1hr before being tested.

Dropping Test: The Units are measured for its frequency and resistance in accordance with Table1 & without mechanical damage, after allowing the crystal to fall freely.

From 75 cm of height 3 times on the firmed wood.

product advantage The new Tianyuan in R & D, design, manufacturing, marketing and service as a whole, have a hundred grade purification workshop.

The international advanced automated production lines, special test equipment, the latest technology and professional and technical personnel; has been preparing for the new Tianyuan own industrial park, to further expand the research and production of the higher requirements of the product.

Product specification - - - - Type | SMD3225 | Frequency Range(MHZ) | 25.000MHZ | Frequency Tolerance(at25) | 10PPm, 5PPm at25+/-2 | Frequency Stability vs.

Temp(FL-T) | 10PPm, 20PPm, 30PPm | Operating Temperature range | -20~+70 -40~+85 | Storage Temperature range | -45~+80 | Temperature Characteristics | 10PPm 20PPm | Load Capacitance | 8 to 20 Pf or Serles | Aging | 3 PPm/year | Insulation Resistance | 500M(DC100V15V) | - - - - Dimension Refluence examination Frequency change: 5ppm FAQ Packing 3000pcs/tape.

Samples and technical support can be provided free of charge.
