P72piezo Flexure Objective Scanner Linear Piezo Positioner - China

price: contact company for price

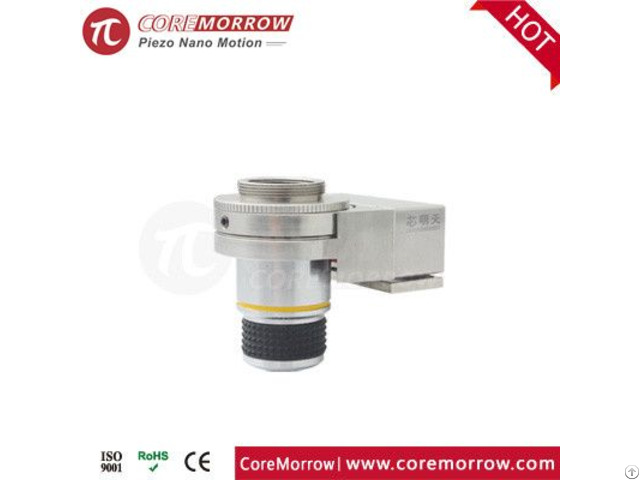

P72piezo Flexure Objective Scanner Linear Piezo Positioner

Products Photos Catalog P72piezo Flexure Photos Catalog

P72Piezo Flexure Objective Scanner/Linear Scanner Piezo Positioner

Key Specifications/Special Features:

Characteristics:

• 80μm focusing range

• Compact Design

• High Resonant Frequency

• Easy to attach on microscopes

• Flexible use by Flex-Adapter

• Optionally Feedback Sensor

Applications:

• Surface Scanning and Analysis

• AFM Microscopy

• Biotechnology(e.g.cell scanning)

• Beam focusing for printing processes

• Semiconductor Test Equipment

Technical Data:

• Types: P72.100S, P72.100K

• Active axes: Z

• Integrated sensor: SGS

• Open-loop travel range(0~120V): 80μm±20%

• Closed-loop travel range: 110μm±20%

• Resolution: 5 or 2.5nm

• Closed-loop linearity: 0.1%F.S.

• Repeatability: 0.05 %F.S.

• Stiffness in motion direction: 1.4N/μm±20%

• Unloaded resonant frequency: 350Hz±20%

• Resonant frequency at 200g: 120Hz±20%

• El.

capacitance: 3.6μF±20 %

• Operating temperature range: -20~80 ℃

• Material: stainless steel

Mass: 150g


Company Contact:


  • Phone: 0451-86268790

  • Address: 1F, Building I2, No.191 Xuefu Road, Nangang District, Harbin，China, Harbin , China , China

  • Email: Email


Published date: February 18, 2021

  • Business Description: CoreMorrow Ltd. focuses on research，development, production and sales of nanoscale precision positioning products, mainly in the service of high-end precision equipment manufacturers.

    After nearly 20 years of rapid development, our market has covered all well-known colleges and universities, research institutes, and high precision equipment manufacturers, and exported to Europe, America, Canada, Singapore, Japan, Korea and other countries.

    We have established partnerships with a number of high-tech enterprises, state key laboratory, has become Chinese most professional precision positioning products manufacturer.
