Pcap Hmi Pos Touchscreen Monitor - Germany

Keetouch embedded monitor – is a perfect embedded solution for your project.

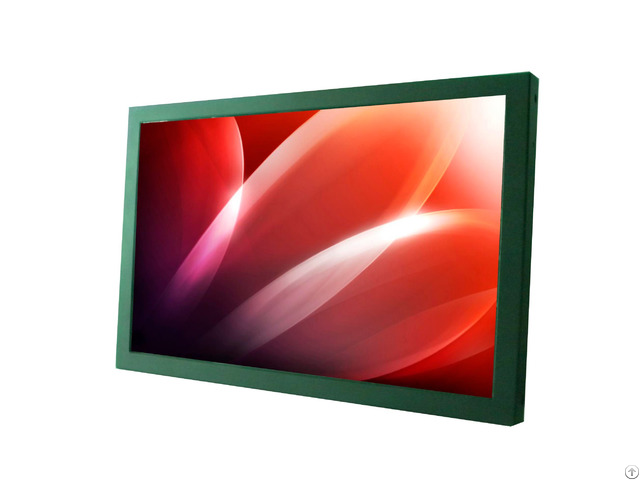

Touchmonitor keetouch 19＂open frame KOT-0190U-IR3W specially designed for easy integration and long lasting operation.

The monitor has a several options for mounting.

This model has a solid framework and durable glass, which protects LCD from mechanical impacts.

The front panel of the monitor is protected against dust and moisture.

Infrared touch screen can withstand intensive operation and perfectly suits for public places, it accepts touch input from any object.

SERIES - Water-proof (front panel)

MONITOR TYPE - Open frame

DISPLAY - 19"

ASPECT RATIO - 5: 4

TOUCHSCREEN TYPE - Infrared touch sensor

TOUCHPOINTS - 1 point

DISPLAY TYPE - Active matrix TFT-LCD, LED

ACTIVE AREA - W378mm × H303mm

WIDTH OF MONITOR - 420mm

HEIGHT OF MONITOR - 345mm

DEPTH OF MONITOR - 52, 5mm

OPTIMAL RESOLUTION - 1280×1024

COLORS - 16.7M

BRIGHTNESS - 250cd/m2

HORIZONTAL (LEFT / RIGHT) - left 85° / right 85°

VERTICAL (UP / DOWN) - up 80°/ down 80°

CONTRAST FACTOR - 1000: 1

FREQUENCY H / V - 30～80KHz / 60～75Hz

POWER SOURCE - External brick

INPUT VOLTAGE - 100-240 VAC, 50-60 Hz

OUTPUT VOLTAGE - 12volts 4amps

POWER CONSUME - 15, 26W Max.

WORKING TEMPERATURE - 0～50°C

STORAGE TEMPERATURE - -20～60°C

WORKING HUMIDITY - 20%～80%

STORAGE HUMIDITY - 10%～90%

DIGITAL VIDEO IN —

ANALOG VIDEO IN VGA

TOUCHSCREEN IN USB

MOUNT VESA - 75mm and 100mm

BRACKETS - Mount, horizontal or vertical

ON-SCREEN DISPLAY FUNCTION（OSD） - Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

BUTTONS - AUTO, +, POWER, -, MENU

AMOUNT IN PACKAGE - 2pcs in one package

BOX SIZE - L500mm × W430mm × H195mm

GROSS WEIGHT - 12, 25Kg (2pcs in one box.

)

Company Contact:

• Posted By: Keetouch GmbH

• Phone: +49 800 724 23 48

• Address: Splieterstraße 61, Warendorf , Germany

• Email:

• Website: https://keetouch.eu

• Business Description: Keetouch company GmbH is a representative office of the Shenzhen Keetouch Electronic co., ltd. in the european union.

  This company was established in 1997 - Trusted by HSBC, CHINA MOBILE, KEYTEC, CHINA UNICOM and others.

  The main field of concern of the company is developing and producing sensor and touch equipment.
